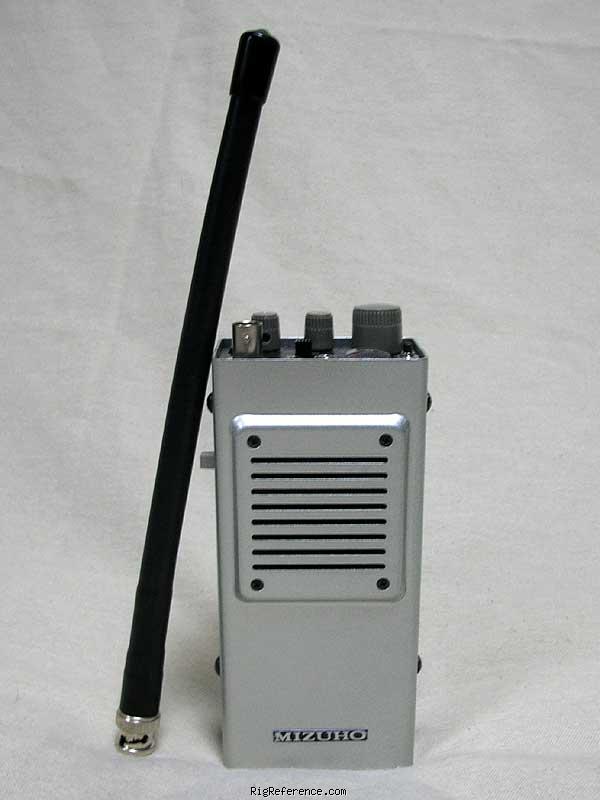

The Mizuho MX-6S is a handheld transceiver. It covers 6 m (50 kHz per XTAL) for both receive and transmit. RF output is 1 W. Power requirements are 9.5 V DC. Dimensions are 142 × 66 × 39 mm. The radio weighs 645 gr with batteries included. Current drain in receive mode is 68 mA and max 600 mA in transmit mode.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 6 m (50 kHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 6 m (50 kHz per XTAL)
- Modulations
- CW SSB
- RF-output
- 1 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 9.5 V DC
- Current drain RX
- 68 mA
- TX
- Max 600 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Handheld
- Manufactured
- Between 1983 and 2002 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3599
- MPN
- MIZUHO-MX-000006S
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MX-6S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Mizuho MX-6S in Good condition is around:
- USD 402
These estimates are based on the following prices:
