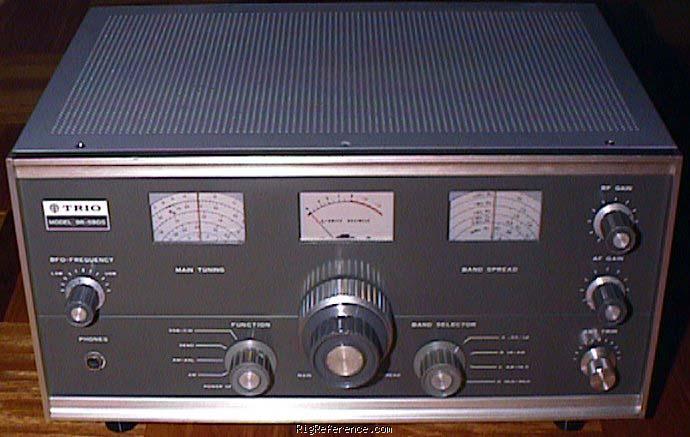

The 9R59DS was economy type of 9R-59D.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.55 - 1.6 / 1.6 - 4.8 / 4.8 - 14.5 / 10.5 - 30 MHz
Modulations
AM   CW   SSB
Sensitivity
Band A, B & C: <6 dB (10 dB S/N)
Band D: <18 dB (13 MHz), <10 dB (28 MHz)
Selectivity
10 kHz (-50 dB)
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
455 kHz
Image rejection
?
Audio output
?

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (110-120 / 220-240 V AC)
Current drain RX
45 W
TX
-

Physical

Dimensions (w×h×d)
381 × 178 × 254 mm (15.00 × 7.01 × 10.00 in)
Weight
8.53 kg (18.8 lbs)
Form factor
Base Station
Manufactured
Between 1968 and 1969 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Bandspread on ham bands
ANL
AVC
Tubes
Accessories
-
RigReference ID
3329
MPN
KENWOOD-000009R-59DS

Manuals, diagrams and brochures

Kenwood 9R 59DS Schematic Diagram PDF - Unknown size, submitted by RigReference
Kenwood 9R 59DS User Manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Good Allrounder 7 years ago by MrBones

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood 9R-59DS. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood 9R-59DS is around:

  • USD 188.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 189.00 Used / Good eBay
