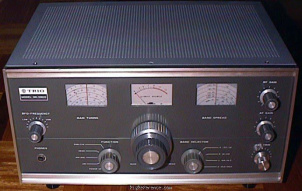

Kenwood 9R-59DS

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.55 - 1.6 / 1.6 - 4.8 / 4.8 - 14.5 / 10.5 - 30 MHz

Modulations

AM   CW   SSB

Sensitivity

Band A, B & C: <6 dB (10 dB S/N)
Band D: <18 dB (13 MHz), <10 dB (28 MHz)

Selectivity

10 kHz (-50 dB)

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

455 kHz

Image rejection

?

Audio output

?

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (110-120 / 220-240 V AC)

Current drain RX

45 W

TX

-

Physical

Dimensions (w×h×d)

381 × 178 × 254 mm (15.00 × 7.01 × 10.00 in)

Weight

8.53 kg (18.8 lbs)

Form factor

Base Station

Manufactured

Between 1968 and 1969 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Bandspread on ham bands
ANL
AVC
Tubes

Accessories

-

RigReference ID

3329

MPN

KENWOOD-000009R-59DS

Manuals, diagrams and brochures

Kenwood 9R 59DS Schematic Diagram PDF - Unknown size, submitted by RigReference

Kenwood 9R 59DS User Manual PDF - Unknown size, submitted by RigReference
