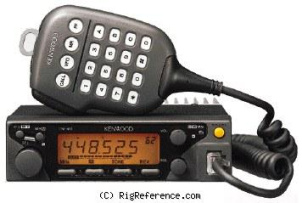

Kenwood TM-461A Mobile UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
400-470 MHz
TX-range
430-440 MHz (General)
438-450 MHz (USA & Canada)
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
0.16 µV (12 dB SINAD)
Selectivity
>12 kHz (-6 dB), <28 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 35 W, Medium: 10 W, Low: 5 W

Connections

Antenna
N-type
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
Max 600 mA
TX
Max 10 A

Physical

Dimensions (w×h×d)
140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 199x and 199x
MPN

Other features

Memories
61 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Kenwood documents.
