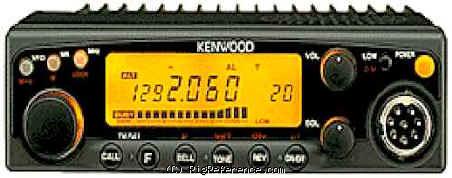

Kenwood TM-541

Mobile UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Kenwood TM-541 is a Mobile UHF Transceiver. It covers 1240-1300 MHz for both transmit and receive. The RF output power is selectable between High: 10 W and Low: 1 W. It features 1 memory bank with 20 channels. Power requirements are 13.8V DC. Current drain is Max 600 mA while receiving and Max 6 A while transmitting.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 1240-1300 MHz
Modulations: FM
Sensitivity: 0.16 µV (12 dB SINAD)
Selectivity: 12 kHz (-6 dB), 36 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1240-1300 MHz
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 600 mA
TX: Max 6 A

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Mobile
Manufactured: Between 199x and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3408
MPN: KENWOOD-TM-000541
