Zastone ZT7500

Amateur Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

Tuning steps: 1 / 5 / 10 Hz (SSB, CW), 10 / 100 Hz (AM, FM)
Measured TX power per band from manufacturer: 160 m 55 W, 80 m 120 W, 40-15 m 80 W, 10 m 40 W, 2 m 50 W
Dimension order as stated: 340 x 177 x 157 mm

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 2m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.5-750 MHz
Modulations: AM FM W-FM CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: HF 0.5-30 MHz, VHF 144-148 MHz
Modulations: AM FM CW USB LSB
RF-output: HF: 100 W
VHF: 50 W

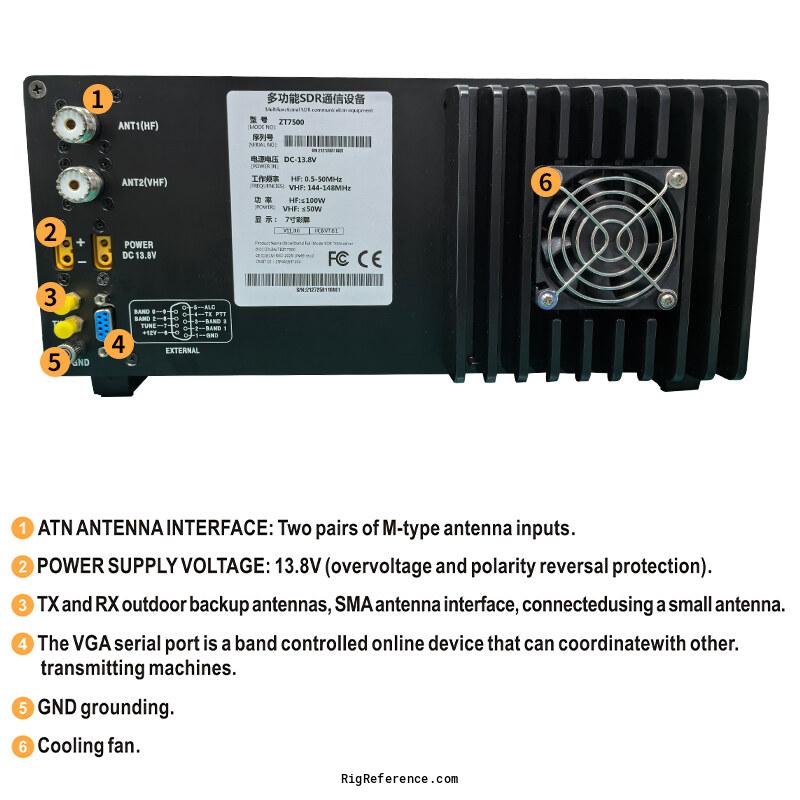

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 0.7-0.9 A
TX: 2.5 A (QRP), 15 A (full power)

Physical

Dimensions (w×h×d): 340 × 157 × 177 mm (13.39 × 6.18 × 6.97 in)
Weight: 3.60 kg (7.9 lbs)
Form factor: Mobile
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: SDR DDC / DUC all-mode transceiver (Wolf platform)
CW, LSB, USB, AM, FM, WFM, digital
Built-in antenna tuner
LNA
Touch screen
Overvoltage and reverse polarity protection
Accessories: -
RigReference ID: 6820
MPN: ZASTONE-ZT007500
