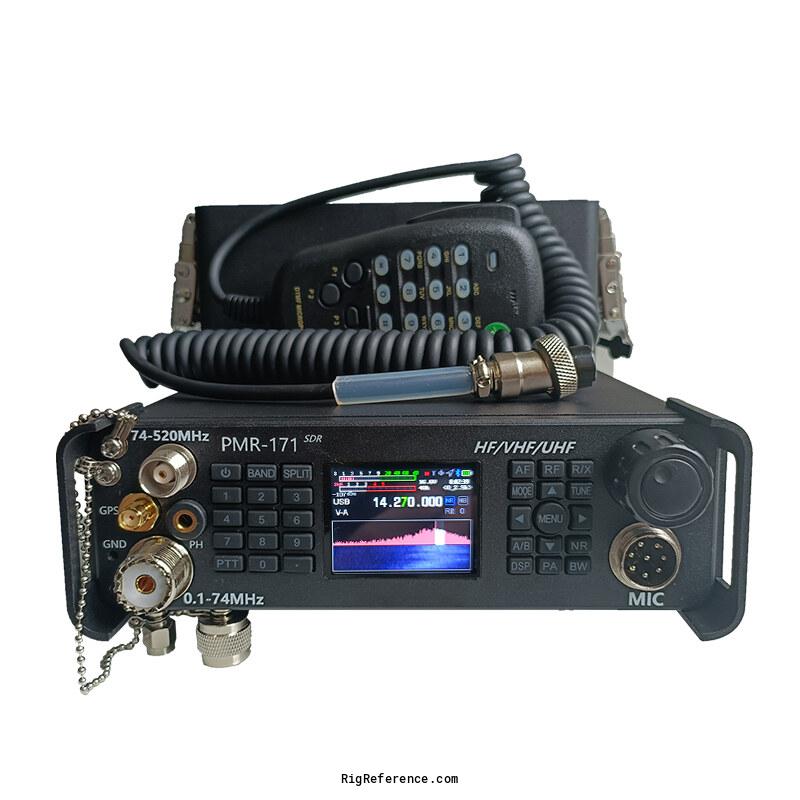

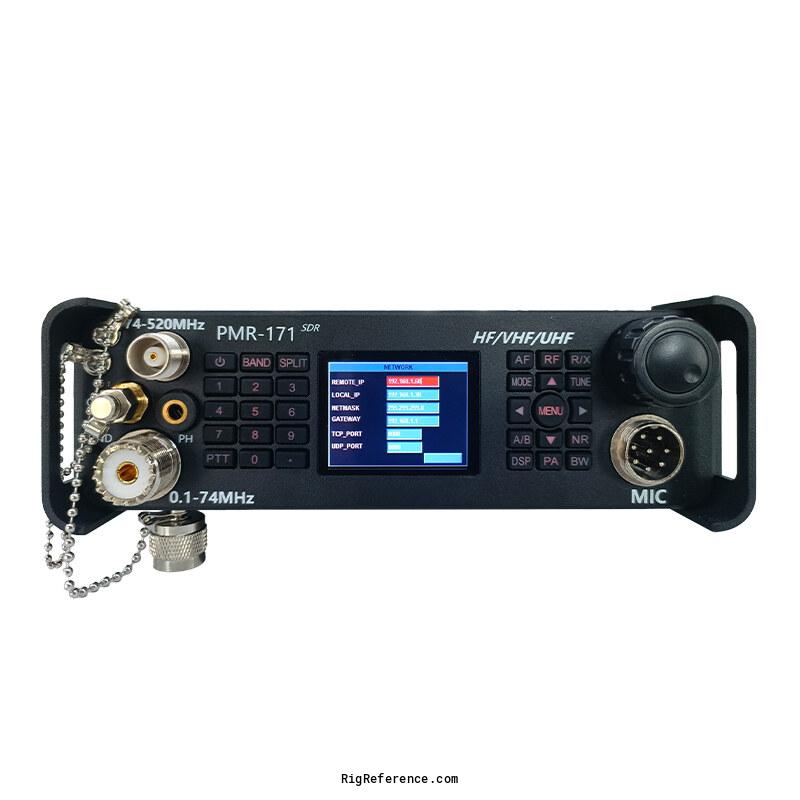

Zastone PMR-171

Amateur Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

Carrier suppression: 50 dB or more (HF), 60 dB (VHF / UHF)
Size 270 x 166 x 50 mm with battery, 220 x 166 x 50 mm without
Transmit ranges for ITU Region 3; 4 m in title

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 2m 70cm 10m
Frequency stability: ?
Tuning steps: ?
Memories: 100 channels in bank(s)

Receiver

RX-range: 100 kHz-2 GHz
Modulations: AM FM W-FM CW USB LSB DMR
Sensitivity: SSB/CW: 0.18 µV (1.8-54 MHz), 0.25 µV (144-148 / 430-450 MHz)
AM: 15 µV (0.3-1.8 MHz), 2 µV (1.8-450 MHz)
FM: 0.5 µV (28-29.7), 0.25 µV (50-54), 0.3 µV (144-148), 0.5 µV (430-450 MHz)
Selectivity: ?
Filters: ?
Receiver system: SDR
IF-frequencies: ?
Image rejection: 70 dB or more (IF rejection)
Audio output: 2 W (8 ohm, 10%)

Transmitter

TX-range: 1.8-2.0, 3.5-3.9, 5.3515-5.3665, 7.0-7.2, 10.1-10.15, 14.0-14.35, 18.068-18.168, 21.0-21.45, 24.89-24.99, 28.0-29.7, 50-54, 144-148, 430-440 MHz (ITU Region 3)
Modulations: AM FM CW USB LSB DMR
RF-output: HF: SSB / CW / FM 10 W, AM 5 W
VHF / UHF: less than 10 W

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 13.8 V nominal (9-18 V)
Current drain RX: 0.25 A nominal, 0.35 A max.
TX: 5 A

Physical

Dimensions (w×h×d): 270 × 50 × 166 mm (10.63 × 1.97 × 6.54 in)
Weight: 1.40 kg (3.1 lbs) Without battery; under 2.4 kg with battery and accessories
Form factor: Mobile
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Portable SDR all-mode transceiver HF / 6 m / 4 m / 2 m / 70 cm
USB, LSB, CW, AM, FM, RTTY, FT8, DMR (optional)
Built-in automatic antenna tuner 1.8-74 MHz
Waterfall display
GPS / Beidou
Bluetooth

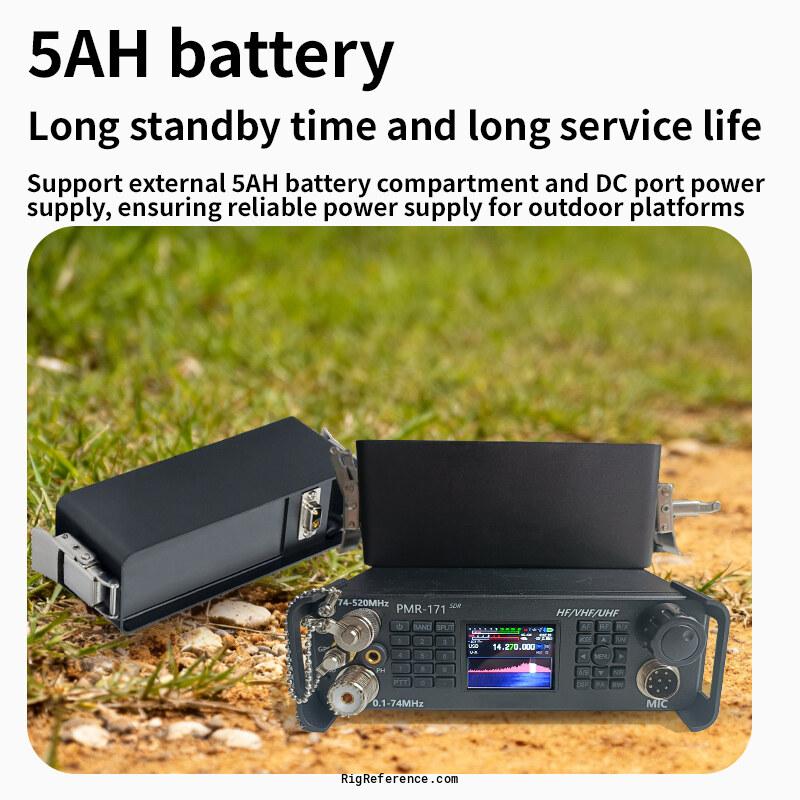

5 Ah internal battery
Accessories: -
RigReference ID: 6813
MPN: ZASTONE-PMR-000171

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
