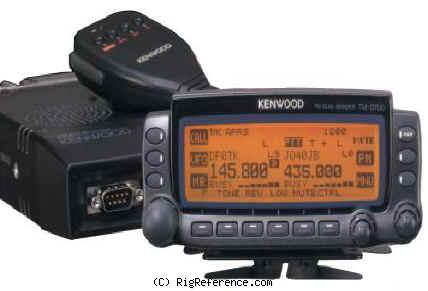

The Kenwood TM-D700E is a mobile VHF/UHF transceiver. It covers 118-524 / 800-1300 MHz for receive and 144-146 / 430-440 MHz for transmit. The receiver system is Double Super Heterodyne with IF frequencies of 1st: 38.85 MHz (VHF), 45.05 (UHF) and 2nd: 450 kHz (VHF), 455 kHz (UHF). RF output power is High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features APRS, Auto repeater offset, Band scope, Built-in TNC 1K2/9K6, DTMF hand mic, DX-info, Dual display, PBBS, Packet 1200/9600 TNC, Remote head and Twin RX. The TM-D700E has 200 memory channels in 1 bank. It weighs 1.4 kg. Dimensions are 40 × 140 × 195 mm. Current drain is 1 A max (receive) and 11.5 A max (transmit).
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±5ppm
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 118-524 / 800-1300 MHz
- Modulations
- AM FM N-FM
- Sensitivity
- Less than 0.16 µV (VHF/UHF)
- Selectivity
- -6 dB: More than 12 kHz
-40 dB: Less than 28 kHz - Filters
- ?
- Receiver system
- Double Super Heterodyne
- IF-frequencies
- 1st: 38.85 MHz (VHF), 45.05 (UHF)
2nd: 450 kHz (VHF), 455 kHz (UHF) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM N-FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1 A max
- TX
- 11.5 A max
Physical
- Dimensions (w×h×d)
- 140 × 40 × 195 mm (5.51 × 1.57 × 7.68 in) Panel: 140×60×34 mm
- Weight
- 1.40 kg (3.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2000 and 200x in Singapore
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- APRS
Auto repeater offset
Band scope
Built-in TNC 1K2/9K6
DTMF hand mic
DX-info
Dual display
PBBS
Packet 1200/9600 TNC
Remote head
Twin RX - Accessories
- -
- RigReference ID
- 3427
- MPN
- KENWOOD-TM-D000700E
Manuals, diagrams and brochures
- Kenwood TM-D700A Instruction Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-D700E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-D700E is around:
- USD 168 ~ USD 311
This estimate is based on similar equipment and may not reflect the exact value of this model.
