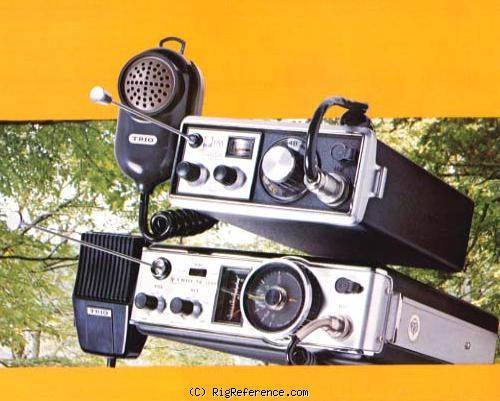

Kenwood TR-2200G

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

Channelized

Memories

12 channels in 1 bank(s)

Receiver

RX-range

144-146 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne XTAL

IF-frequencies

10.7 MHz
455 kHz

Image rejection

?

Audio output

700 mW

Transmitter

TX-range

144-146 MHz

Modulations

FM

RF-output

1 W

Connections

Antenna

Built-in telescopic

Impedance

50Ω

Other

-

Electrical

Power requirements

10.4-15.2V DC

Current drain RX

55 mA

TX

Max 420 mA

Physical

Dimensions (w×h×d)

135 × 58 × 191 mm (5.31 × 2.28 × 7.52 in)

Weight

1.80 kg (4.0 lbs) 10 × NiCd and mic included

Form factor

Portable

Manufactured

Between 197x and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3442

MPN

KENWOOD-TR-002200G

Manuals, diagrams and brochures

Kenwood TR-2200 Instruction Manual PDF - Unknown size, submitted by RigReference

TR-2200G PDF - 12.75 MB, submitted by Berend



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-2200G. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TR-2200G is around:

• EUR 1.00
• USD 35.00
• DEM 8.00

Price History Chart

These estimates are based on the following prices:
