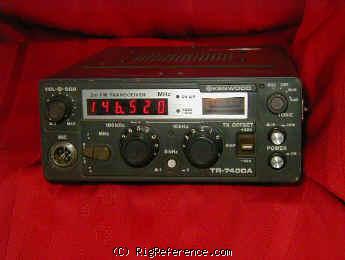

The Kenwood TR-7400A is a Mobile VHF Transceiver. It covers 144-148 MHz for both transmit and receive with 5 kHz tuning steps. RF output power is selectable between High: 25 W and Low: 5 W. The radio operates on 13.8V DC, drawing a maximum of 1 A in receive and 4.5-8 A in transmit. The TR-7400A features CTCSS, DTMF and tone burst options. Dimensions are 74 × 182 × 270 mm and the weight is 2.8 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- 4.5-8 A
Physical
- Dimensions (w×h×d)
- 182 × 74 × 270 mm (7.17 × 2.91 × 10.63 in)
- Weight
- 2.80 kg (6.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DTMF and tone burst options
- Accessories
- -
- RigReference ID
- 3456
- MPN
- KENWOOD-TR-007400A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-7400A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TR-7400A in Good condition is around:
- USD 75
These estimates are based on the following prices:
