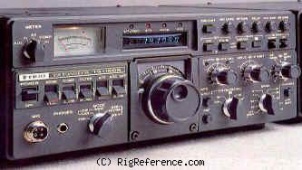

The Kenwood TS-180S is designed for SSB, FSK and CW modes in the 160 through 10 meter ham bands. It also features receive of WWV at 10 MHz. This solid-state radio features a 100 Hz digital display with analog subdial. Power input is 200W PEP SSB and 160W DC CW (160W/140W on 10 meters).
4 tunable memories are optional, if the DFC-180 is installed.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 10-160 m (no general coverage)
WWV 10 MHz - Modulations
- CW SSB FSK
- Sensitivity
- 0.25 µV S+N/N or more
- Selectivity
- SSB/CW wide: 2.4 kHz (-6 dB), 4.2 kHz (-60 dB)
FSK/CW narrow with YK-88C: 0.5 kHz (-6 dB), 1.8 kHz (-60 dB) - Filters
- YK-88C CW filter, 500 Hz YK-88S SSB filter, 2.2 kHz
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- 8.830 MHz
- Image rejection
- 60 dB
- Audio output
- 2 W at 10% distortion / 4 ohm
Transmitter
- TX-range
- 10-160 m
- Modulations
- CW SSB FSK
- RF-output
- Max 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC (13.8V DC nominal)
- Current drain RX
- 1.2-1.6 A
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 325 × 133 × 287 mm (12.80 × 5.24 × 11.30 in)
- Weight
- 11.50 kg (25.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1979 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- WARC option
NB
Dual RIT
IF Shift
VOX
Transverter terminals - Accessories
- AT-180 Antenna tuner with SWR/power meter and antenna switch
DFC-180 Digital frequency control
HS-4 headphones
HS-5 headphones
MC-35S Hand microphone, 50 kohm
MC-50 Desk microphone, 500 ohm/50 kohm
PC-1 Phone patch
PS-30 Power supply
SM-220 Station monitor
SP-180 External speaker with filters
VFO-180 Remote VFO
YK-88C CW filter, 500 Hz
YK-88S SSB filter, 2.2 kHz - RigReference ID
- 3479
- MPN
- KENWOOD-TS-000180S
Manuals, diagrams and brochures
- Kenwood TS-180 User Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-180S Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-180S WARC bands Installation Guide PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-180S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-180S in Good condition is around:
- EUR 400
These estimates are based on the following prices:
