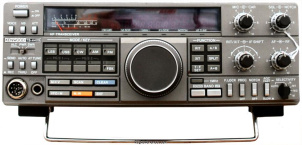

Kenwood TS-440S

Desktop Shortwave Transceiver

View all reviews (3) Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
Frequency stability
Tuning steps


0.15-30 MHz
AM   FM   CW   USB   LSB   FSK
Receiver system
Image rejection
Audio output


10-160 m + WARC
AM   FM   CW   USB   LSB   FSK
Max 100 W (AM: 50 W)


50 Ω


Power requirements
12-16V DC
Current drain RX
1.9 A
Max 20 A


Between 1986 and 19xx
Dimensions (w×h×d)
270 × 96 × 313 mm (10.63 × 3.78 × 12.32 in)
6.30 kg (13.9 lbs)
Form factor
Base Station

Other features

Amateur / Ham radio operators
Features + options
Auto-AT option.

Manuals, diagrams and brochures

Kenwood TS-440S Service Manual submitted by RigReference
Kenwood TS-440S User Manual submitted by RigReference
Upload relevant documents
Show other documents.
Find the Kenwood TS-440S user manuals on eBay

Reviews & stories

Needs Help

Kenwood TS-440S, Desktop Shortwave Transceiver

I have owned several TS-440SAT's over the years, and have found them to be very rugged. Reliability was a problem over time with dry joints and shorts caused when sealant adsorbed moisture giving rise to instability. It is, without doubt, very poorly filtered against RF pickup, and must always be connected to a very good earth system. That on its own is not enough, as internal filtering and decoupling are required throughout the rig. The necessary mods are easily found on the internet and are an absolutely required step in transforming this rig into great performer, a labor of love for sure!
The TS-440 Yahoo Group contains a wealth of information and experienced assistance, membership is strongly recommended. I use my 440 mostly for digimodes, the cooling fan mod is mandatory here. My current 440 is fully loaded with Kenwood 1.8KHZ SSB and 270Hz CW filters, my Timewave 599zx provides additional SSB filtering and doubles as an excellent modem for PSK31 and RTTY, and my Datong FL3 multimode filter works well on phone, the manual and auto notch way better than the built in notch filter, even when modified. The Datong itself needs the cutoff frequencies lowered by modification to improve the performance, easily done. The use of Inrad filters will deliver superior selectivity performance over standard Kenwood filters and are recommended. The built in antenna matching unit works well, within tolerance, for band edge matching, but the factory components need replacing with more rugged equivalents to avoid common failures. The SGC QMS-37 mobile auto matching unit works extremely well with a variety of antennas, when properly grounded, giving complete and reliable all band coverage at 100w SSB. The RX audio is not helped by the cheap internal speaker, a good quality replacement or external SGC digital filtered speaker for mobile use works very well. TX audio has brought many complimentary remarks, especially when the better quality Murata filter was fitted. The built in excuse for a speech processor leaves a lot to be desired, here the Datong RF speech clipper works very well for DX as does the latest TenTec offering. The AOR digital voice unit takes TRX audio to another level when communicating with similar equipment, the shape of rigs to come!
So, now that the handfuls of ripped out hair have grown back and my 440 works to my satisfaction, I would recommend this tough little rig to anyone.

Written by GI0ZGB on Jan 11, 2010

Build quality
User friendliness
Value for money
Good condition in 1988
GBP 1000.00

TS-440s fixer upper

Kenwood TS-440S, Desktop Shortwave Transceiver

Got this one for $50.

It had the all dots in the display issue.

I spend 15 hrs cleaning the VCO, replaced a varicap. And resoldered 20 + cold solderjoints + 150 suspects. These where on all the boards.

It now works to original specs, I'm stoked.

Written by Dan on Nov 9, 2012

Build quality
User friendliness
Value for money
Poor condition in 2012
USD 50.00

Nice "oldtimer"

Kenwood TS-440S, Desktop Shortwave Transceiver

Nothing wrong with this machine.

Build quality
User friendliness
Value for money
Good condition in 2011
EUR 400.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-440S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-440S is around:

  • EUR 198.00 ~ EUR 49.00
  • USD 87.00 ~ USD 30.00
  • AUD 368.00 ~ AUD 79.00
  • GBP 18.00 ~ GBP 14.00
Year Historic price Condition Submitted by
2017 AUD 375.00 Used / Good VK3EME
2016 USD 345.00 Used / Good Minicowman
2012 USD 50.00 Used / Poor Dan
2012 USD 300.00 Used / Good N9SJA
2011 EUR 400.00 Used / Good benny.strom
2011 EUR 100.00 Used / Poor pienari
2010 USD 510.00 Used / Mint n8gxz
2010 USD 550.00 Used / Good n8gxz
2009 AUD 250.00 Used / Okay zl3xd
2009 USD 275.00 Used / Okay hfradionut
