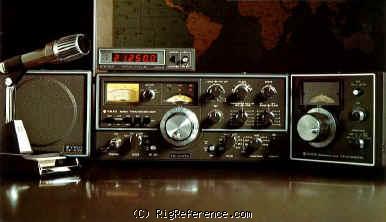

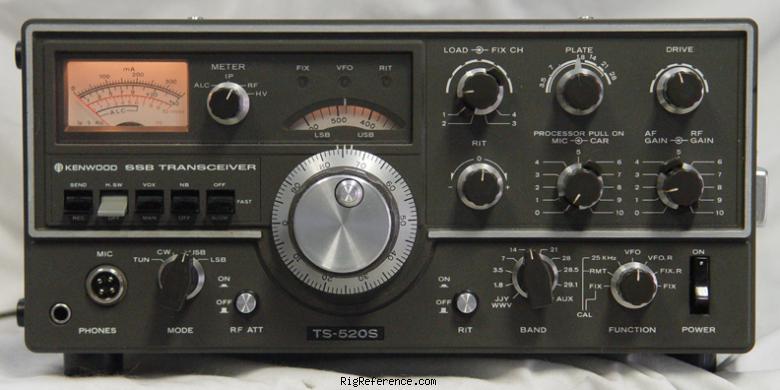

Kenwood TS-520S

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

160-10 m

Modulations

CW   SSB

Sensitivity

0.25 µV S+N/N 10 dB or more

Selectivity

SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
CW: 0.5 kHz (-6 dB), 1.5 kHz (-60 dB) with optional CW filter

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

Better than 50 dB

Audio output

?

Transmitter

TX-range

160-10 m

Modulations

CW   SSB

RF-output

Max 100 W

Connections

Antenna

SO-239

Impedance

50/75 Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

5 A (heaters on), 0.6 A (heaters off)

TX

15 A max.

Physical

Dimensions (w×h×d)

333 × 153 × 335 mm (13.11 × 6.02 × 13.19 in)

Weight

16.00 kg (35.3 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3490

MPN

KENWOOD-TS-000520S

Manuals, diagrams and brochures

Ts520S Owners Manual PDF - 3.70 MB, submitted by David Ratcliffe

Kenwood TS-520S Schematic (hi-res) PDF - 20.50 MB, submitted by David Ratcliffe



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-520S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TS-520S in Good condition is around:

• USD 275 ~ USD 363
• AUD 263

Price History Chart

These estimates are based on the following prices:
