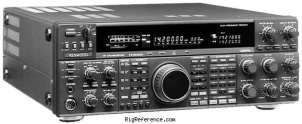

Kenwood TS-950SDX Desktop Shortwave Transceiver

 (5.0/5)  Add a review   View all reviews (1)   Add to my shack



Login or Register to upload images

The improved Kenwood TS-950SDX has been redesigned and enhanced for the serious contester and DX'er. Its outstanding general coverage receiver is capable of receiving two frequencies simultaneously. This dual receiver function features independent: IF circuits, frequency selector with frequency step size, noise blanker with level control, AF control and frequency displays. Digital signal processing provides unsurpassed receiver and transmitter performance that is not possible with analog processing. The built-in microprocessor-controlled automatic antenna tuner is pre-programmed to quickly tune for minimum SWR. Unlike the TS-950S, the SO-2 high stability TCXO is built-in. With MOS FET final, keyer, hand mic and more! The TS-950SDX includes the MC-43S hand mic.

This model has been replaced by the Kenwood TS-990S / Kenwood TS-990D.

Frequency range

RX-range
0.1-30 MHz
TX-range
10-160 m + WARC
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
Max 150 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
402 × 141 × 400 mm (15.83 × 5.55 × 15.75 in)
Weight
23.00 kg (50.7 lbs)
Form factor
Base Station
Manufactured
Between 199x and 199x
MPN
KENWOOD-TS-000950SDX

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Built-in keyer and auto AT. DSP. Twin RX
Accessories
-

Manuals, diagrams and brochures

Kenwood TS-950SDX In-Depth Manual submitted by RigReference
Kenwood TS-950SDX Service Manual submitted by RigReference
Kenwood TS-950SDX User Manual submitted by RigReference

Upload relevant documents

Show other documents.

Reviews & stories

ts 950sdx

Kenwood TS-950SDX, Desktop Shortwave Transceiver

super transceiver excellent quality

Written by hb9mcf on Dec 4, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2012
EUR 1900.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Kenwood TS-950SDX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Price Condition Year User
