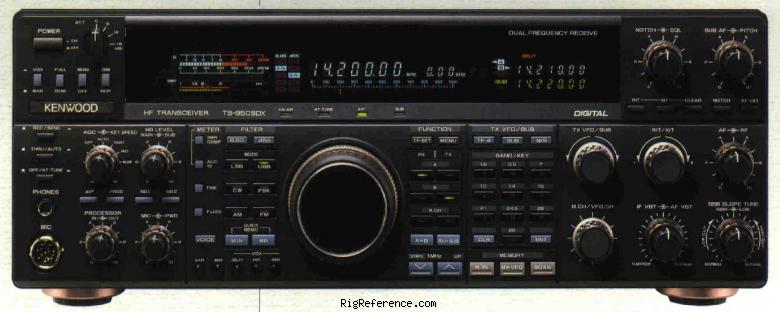

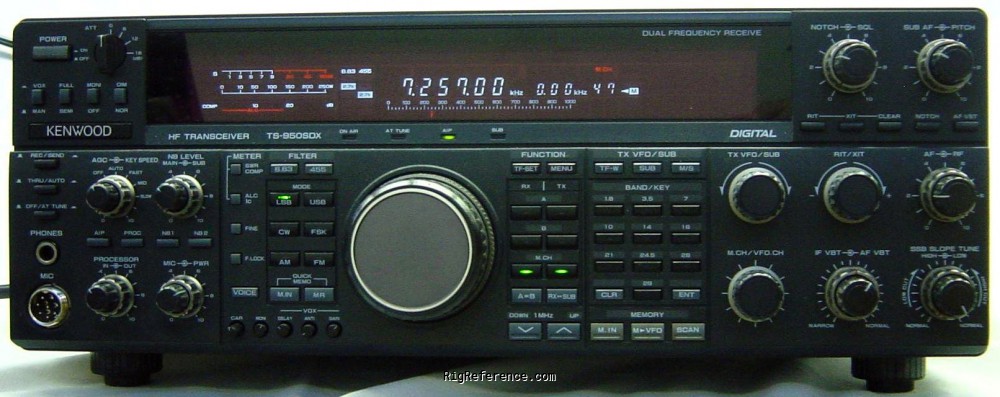

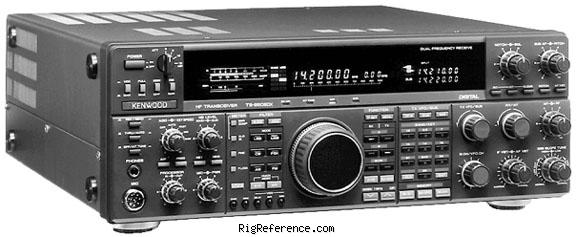

The improved Kenwood TS-950SDX has been redesigned and enhanced for the serious contester and DX'er. Its outstanding general coverage receiver is capable of receiving two frequencies simultaneously. This dual receiver function features independent: IF circuits, frequency selector with frequency step size, noise blanker with level control, AF control and frequency displays. Digital signal processing provides unsurpassed receiver and transmitter performance that is not possible with analog processing. The built-in microprocessor-controlled automatic antenna tuner is pre-programmed to quickly tune for minimum SWR. Unlike the TS-950S, the SO-2 high stability TCXO is built-in. With MOS FET final, keyer, hand mic and more! The TS-950SDX includes the MC-43S hand mic.

This model has been replaced by the Kenwood TS-990S / Kenwood TS-990D.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.1-30 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
RF-output
Max 150 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
402 × 141 × 400 mm (15.83 × 5.55 × 15.75 in)
Weight
23.00 kg (50.7 lbs)
Form factor
Base Station
Manufactured
Between 199x and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in keyer and auto AT. DSP. Twin RX
Accessories
-
RigReference ID
3518
MPN
KENWOOD-TS-000950SDX

Manuals, diagrams and brochures

Kenwood TS-950SDX In-Depth Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-950SDX Service Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-950SDX User Manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
ts 950sdx 7 years ago by hb9mcf
