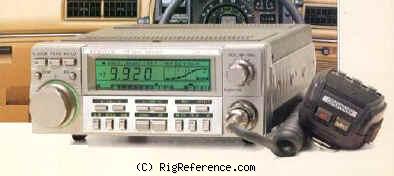

The Kenwood TW-4000A is a mobile VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Europe) for both receive and transmit. The radio features an image rejection of >70 dB. RF output power is selectable between high (25W VHF/25W UHF) and low (5W VHF/5W UHF). It has 1 memory bank with 10 channels. Power requirements are 13.8V DC +/- 15%. The current drain in receive mode is 600 mA (no input signal) and max 7.5 A in transmit. Dimensions are 60 × 161 × 217 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz (Europe)
- Modulations
- FM
- Sensitivity
- 0.17 µV (12 dB SINAD)
- Selectivity
- 14 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >70 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
- Modulations
- FM
- RF-output
- High: 25/25 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 600 mA (no input signal)
- TX
- Max 7.5 A
Physical
- Dimensions (w×h×d)
- 161 × 60 × 217 mm (6.34 × 2.36 × 8.54 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1983 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3520
- MPN
- KENWOOD-TW-004000A
Manuals, diagrams and brochures
- Kenwood TW-4000 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TW-4000A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TW-4000A in Good condition is around:
- USD 145
These estimates are based on the following prices:
