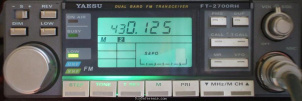

The Yaesu FT-2700RH is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz (Europe & Asia) for both receive and transmit. RF output is High: 25/25 W, Low: 3/3 W. Power requirements are 13.8V DC. Dimensions are 50 × 150 × 168 mm. The transceiver features a current drain of 600 mA in receive mode and a maximum of 7 A in transmit mode.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 12.5 / 25 kHz
- Memories
- ?
Receiver
- RX-range
- 144-146 / 430-440 MHz (Europe & Asia)
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe & Asia)
- Modulations
- FM
- RF-output
- High: 25/25 W, Low: 3/3 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 600 mA
- TX
- Max 7 A
Physical
- Dimensions (w×h×d)
- 150 × 50 × 168 mm (5.91 × 1.97 × 6.61 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1985 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4274
- MPN
- YAESU-FT-002700RH
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2700RH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-2700RH in Good condition is around:
- USD 263
These estimates are based on the following prices:
