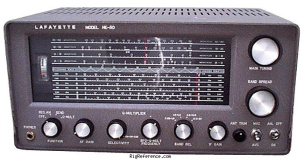

Lafayette HE-30 (KT-320)

Desktop Shortwave receiver

View all reviews (2) Add a review Add to my shack



Login or Register to upload images

Find Lafayette HE-30 (KT-320) rigs and spare parts on eBay Find the Lafayette HE-30 (KT-320) on Amazon
We receive a small fee when you buy through these links, thank you!

Also known as Lafayette KT-320 in kit form.

Frequency range

RX-range
0.55-30 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW
Sensitivity
1 µV (10 dB S/N)
Selectivity
4 kHz (-6 dB), 20 kHz (-60 dB) without Q-multiplier
1.6 kHz (-6 dB) with Q-multiplier
Receiver system
9 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
50/400 Ω

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
381 × 177.8 × 254 mm (15.00 × 7.00 × 10.00 in)
Weight
9.53 kg (21.0 lbs)
Form factor
Base Station
Manufactured
Between 1961 and 1964
MPN
LAFAYETTE-HE-000030-(KT-320)

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Lafayette HE-30 Manual submitted by Charles Hall

Upload relevant documents

Show other documents.
Find the Lafayette HE-30 (KT-320) user manuals on eBay #ad

Reviews & stories

HE-30

Lafayette HE-30 (KT-320), Desktop Shortwave receiver

Receives SSB with BFO Not listed. Good sensetivity and very stable after short warm up. Great Boatanchor.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 0.00

Great Receiver

Lafayette HE-30 (KT-320), Desktop Shortwave receiver

Received this radio for birthday 50 years ago. Great radio! I still have it in my shack! See photo at qrz.com. Call sign N5YZ..

Written by [deactivated user] on Nov 18, 2015

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2015

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Lafayette HE-30 (KT-320). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Lafayette HE-30 (KT-320) is around:

  • USD 12.00
Year Historic price Condition Submitted by
2010 USD 25.00 Used / Okay eBay
2010 USD 56.00 Used / Okay eBay
2010 USD 0.00 Used / Good oddbob51
