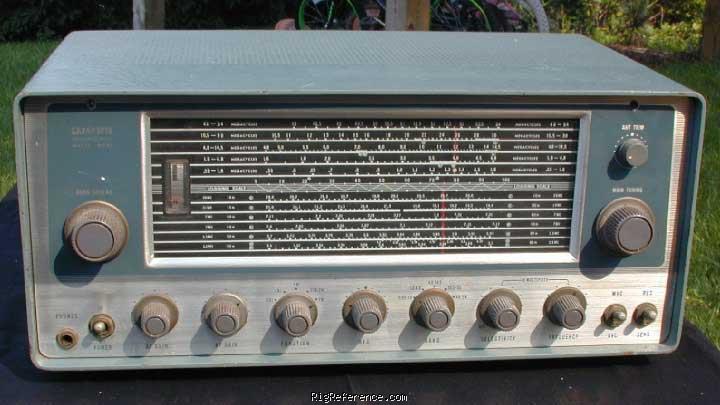

Lafayette HE-80

General characteristics

HAM bands

80m  40m  20m  15m  6m  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

0.55-30 / 48-54 MHz in 5 bands

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Superheterodyne, 14 tubes

IF-frequencies

455 kHz

Image rejection

?

Audio output

1.5 W

Connections

Antenna

SO-239 + Clamps / screws

Impedance

?

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

432 × 194 × 257 mm (17.01 × 7.64 × 10.12 in)

Weight

10.70 kg (23.6 lbs)

Form factor

Base Station

Manufactured

Between 1963 and 1964 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Pre-selector stage
Electrical bandspread
Q-multiplier
ANL noise limiter
Switchable MVC/AVC
Antenna trimmer
Crystal calibrator
S-meter

Accessories

-

RigReference ID

3549

MPN

LAFAYETTE-HE-000080

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lafayette HE-80. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Lafayette HE-80 is around:

• USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.
