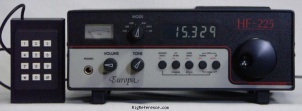

Lowe HF-225E Mobile Shortwave receiver

 (4.8/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

The special edition Lowe HF-225 Europa version provides optimized features and performance for the demanding DX'er. It looks virtually the same as the Lowe HF-225 but features the following enhancements:
• The IF filter bank includes higher specification filters.
• Resulting filter values include: 2.2, 3.5, 4.5 and 7.0 kHz.
• Filter chokes replaced by quality magnetically shielded chokes.
• Filter selection diodes replaced by low capac. switching diodes.
• Filter select decoupling capacitors are bypassed by new chip capacitors.
• The D-225 FM & Synchronous AM detector are factory installed.
• The KPAD-1 wired keypad is provided.

Frequency range

RX-range
0.03-30 MHz
TX-range
-
HAM bands
-
Stability
< ±30 Hz in 1 hour typical
Tuning steps
8 Hz / 0.05 kHz
Filters
-

Receiver

Modulations
AM   AM-sync   N-FM   CW   USB   LSB
Sensitivity
0.5 µV SSB 2-30 Mhz
Selectivity
2,2kHz / 1,4:1
3,5kHz / 1,38:1
4,5kHz / 1,53:1
7,0kHz / 1,41:1
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 45 MHz
2nd: 455 kHz
Image rejection
-
Audio output
1.6W 8 ohms 5% THD

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Hi-Z
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
253 × 109 × 204 mm (9.96 × 4.29 × 8.03 in)
Weight
1.90 kg (4.2 lbs)
Form factor
Mobile
Manufactured
Between 199x and 199x in Great Britain
MPN

Other features

Memories
30 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Lowe HF225

Lowe HF-225E, Mobile Shortwave receiver

I have my HF-225 for two weeks now. Itś a verry easy to use sensitive lkiitje Marvel.

Allbuttons and the dial are easy to use. No complicated things to worry about. Even on LW an MW it's a verry fine receiver in my opinion. Compared to my Barlow Wadley itś more sensitive and easier to opperate. The remote keypad is easy for direct frequecy input. On Ebay i also found a wireless remote. Even operating via your computer is possible. There is a schematic and simple program on the net for this.

Compared to the new Palster R30A it has les memory places and more filters. And the Palstar lacks posibility's for remote or Computer operating.

I like it a lot

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
EUR 300.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Lowe HF-225E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Lowe HF-225E might be around:

  • EUR 119.00
Price Condition Year User
EUR 300.00 Used / Good 2009 ejfrolich
