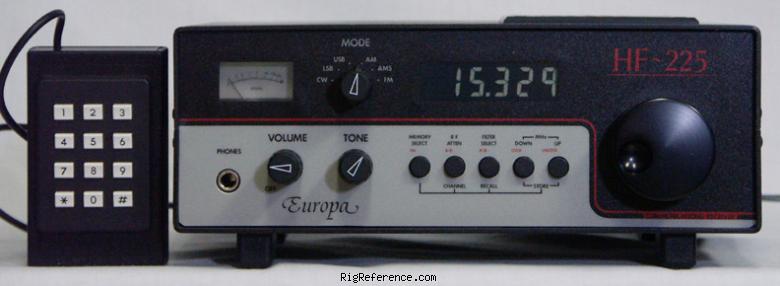

The special edition Lowe HF-225 Europa version provides optimized features and performance for the demanding DX'er. It looks virtually the same as the Lowe HF-225 but features the following enhancements:
• The IF filter bank includes higher specification filters.
• Resulting filter values include: 2.2, 3.5, 4.5 and 7.0 kHz.
• Filter chokes replaced by quality magnetically shielded chokes.
• Filter selection diodes replaced by low capacity switching diodes.
• Filter select decoupling capacitors are bypassed by new chip capacitors.
• The D-225 FM & Synchronous AM detector are factory installed.
• The KPAD-1 wired keypad is provided.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- < ±30 Hz in 1 hour typical
- Tuning steps
- 8 Hz / 0.05 kHz
- Memories
- 30 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-30 MHz
- Modulations
- AM AM-sync N-FM CW USB LSB
- Sensitivity
- 0.5 µV SSB 2-30 Mhz
- Selectivity
- 2,2kHz / 1,4:1
3,5kHz / 1,38:1
4,5kHz / 1,53:1
7,0kHz / 1,41:1 - Filters
- 2.2, 3.5, 4.5 and 7.0 kHz
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 45 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 1.6W 8 ohms 5% THD
Connections
- Antenna
- SO-239 + Hi-Z
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 253 × 109 × 204 mm (9.96 × 4.29 × 8.03 in)
- Weight
- 1.90 kg (4.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x in Great Britain
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3558
- MPN
- LOWE-HF-000225E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lowe HF-225E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Lowe HF-225E is around:
- EUR 39.00
These estimates are based on the following prices:
