Mizuho MX-28S

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

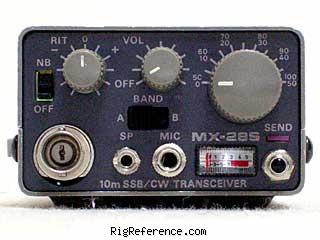

The Mizuho MX-28S is a HF transceiver. It covers 10 m with 50 kHz per XTAL on both receive and transmit. The RF output is 2 W. Audio output is via an internal speaker. Power requirements are 9.5V DC. Dimensions are 142 × 66 × 39 mm.

General characteristics

HAM bands: 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 10 m (50 kHz per XTAL)
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: VXO. Max 2 XTALS
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 10 m (50 kHz per XTAL)
Modulations: CW SSB
RF-output: 2 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 9.5V DC
Current drain RX: 68 mA
TX: Max 600 mA

Physical

Dimensions (w×h×d): 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
Weight: 645 gr (1.4 lbs) batteries included
Form factor: Portable
Manufactured: Between 1987 and 2002 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3594
MPN: MIZUHO-MX-000028S
