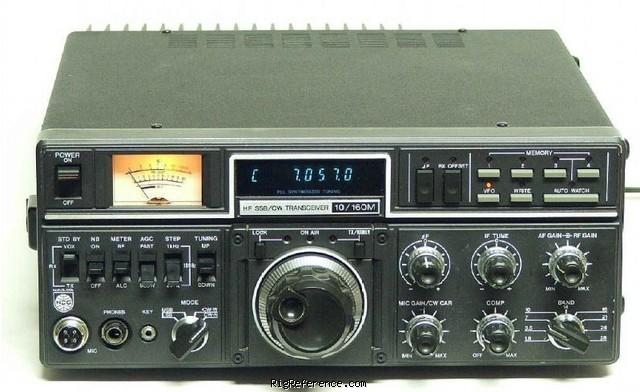

The NCG 10/160M was made in Japan by Matsushita (Panasonic) and was marketed as the National RJX-810D there. In the US National Communications Group (NCG) imported a limited number of these rigs and sold them under their own name. RF-power can be adjusted to very low levels, as low as 300mW, excellent for QRP operations. This rig is the same as the National / Panasonic RJX-810D.

General characteristics

HAM bands
160m  80m  40m  20m  15m  10m
Frequency stability
≤ ±200 Hz within 1 hour ≤ ±20 Hz after 1 hour
Tuning steps
25 / 100 Hz / 1 kHz
Memories
4 channels in 1 bank(s)

Receiver

RX-range
10-160 m
Modulations
CW   USB   LSB
Sensitivity
≤ -12 dBµ (0.25 µV)
Selectivity
SSB: 1.1 kHz at -6 dB
CW: 200 Hz
Filters
?
Receiver system
Single conversion
IF-frequencies
SSB: 9.000 MHz
CW: 9.007 MHz
Image rejection
≥ 60 dB
Audio output
500 mw (10% THD, 8 ohm)

Transmitter

TX-range
10-160 m
Modulations
CW   USB   LSB
RF-output
100 W (0.5 W - 125 W)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains or 12 V DC
Current drain RX
0.6 A
TX
20 A

Physical

Dimensions (w×h×d)
305 × 152 × 406 mm (12.01 × 5.98 × 15.98 in)
Weight
10.20 kg (22.5 lbs)
Form factor
Base Station
Manufactured
Between 198x and 198x in Japan by Matsushita (Panasonic)

Other features

Usage
Amateur / Ham radio operators
Features + options
AGC
RIT
XIT
IF fine tune (shift)
RF gain
Noise blanker
Accessories
-
RigReference ID
3684
MPN
NCG-000010/160M

Manuals, diagrams and brochures

NCG 10/160M Instruction manual + diagrams PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Super bargain with good features! 14 years ago by N8DE

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used NCG 10/160M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the NCG 10/160M is around:

  • EUR 95.00
  • USD 12.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 EUR 300.00 Used / Mint iz0eyj
1984 USD 850.00 New / Mint N8DE
