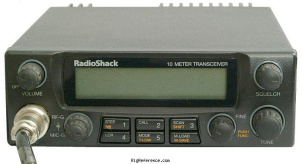

RadioShack / Realistic HTX-10 Mobile Shortwave Transceiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
28-29.7 MHz (25.150-29.7 after modification)
TX-range
28-29.7 MHz (25.150-29.7 after modification)
HAM bands
-
Stability
-
Tuning steps
1 / 10 / 100 kHz
Filters
-

Receiver

Modulations
AM   FM   SSB
Sensitivity
0.5 µV (10 dB S/N)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
>70 dB
Audio output
-

Transmitter

Modulations
AM   FM   SSB
RF-Output
AM: 7 W, FM/SSB: 25 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
12-16V DC
Current drain RX
-
TX
3-5 A

Physical

Dimensions (w×h×d)
154 × 52 × 248 mm (6.06 × 2.05 × 9.76 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Mobile
Manufactured
Between 199x and 200x
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Repeater offset (Shift)
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

HTX-10

RadioShack / Realistic HTX-10, Mobile Shortwave Transceiver

Solid transceiver, unfortunately no longer made. You can get them on e-bay for a reasonable price. Excellent AM/FM/SSB transceiver now that 10 meters is starting to open up again. If you want to do CW, use tone injection into the microphone circuit. I have also used it as a beacon transmitter with HRD/DM780 and a home-built interface.

/paul W3FIS

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2010
USD 50.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the RadioShack / Realistic HTX-10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the RadioShack / Realistic HTX-10 might be around:

  • USD 45.00
Price Condition Year User
USD 50.00 New / Mint 2004 N6OTQ
USD 75.00 Used / Good 2009 KC2UGV
USD 50.00 Used / Mint 2010 deadgoose
USD 50.00 Used / Okay 2014 ac9hp
