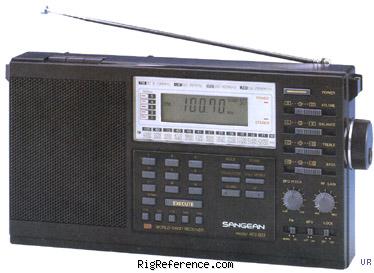

Sangean ATS-803

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

?

Tuning steps

9 / 10 kHz

Memories

15 channels in 1 bank(s)

Receiver

RX-range

0.150-30 / 87.5-108 MHz

Modulations

AM   W-FM Stereo   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

9V DC (6R20/D + 2R6/AA)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

293 × 160 × 60 mm (11.54 × 6.30 × 2.36 in)

Weight

1.75 kg (3.9 lbs)

Form factor

Portable

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Clock. RF gain

Accessories

-

RigReference ID

3941

MPN

SANGEAN-ATS-000803
