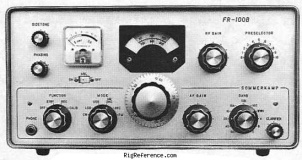

Sommerkamp FR-100B

General characteristics

HAM bands

80m  60m  40m  20m  15m  10m

Frequency stability

< 100 cps for 10% line fluctuation after warm up

Tuning steps

Continuous

Memories

None

Receiver

RX-range

10-80 m

Modulations

AM   FM   CW   SSB

Sensitivity

0.5 µV (10 dB S/N)

Selectivity

SSB: 2.1 kHz @ -6 dB, 2.5 kHz @ -60 kHz
AM: 4 kHz @ -6 dB, 7.5 kHz @ -25 kHz
AM: 2.1 kHz @ -6 dB, 2.5 kHz @ -25 kHz
CW: 5 kHz @ -6 dB, 2.5 kHz @ -60 kHz

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

455 kHz

Image rejection

> 50 dB

Audio output

2 W

Connections

Antenna

SO-239

Impedance

50/70Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

50 W

TX

-

Physical

Dimensions (w×h×d)

380 × 180 × 330 mm (14.96 × 7.09 × 12.99 in)

Weight

12.00 kg (26.5 lbs)

Form factor

Base Station

Manufactured

Between 1965 and 196x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3974

MPN

SOMMERKAMP-FR-000100B
