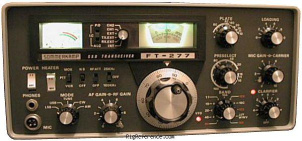

Sommerkamp FT-277

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

≤ 100 Hz drift per 30 minutes

Tuning steps

Continuous

Memories

?

Receiver

RX-range

1.8-30 MHz incl. WWV

Modulations

AM   CW   USB   LSB

Sensitivity

0.3 µV (10 dB S/N)

Selectivity

2.4 kHz @ -6 dB / 4.5 kHz @ -60 dB
600 Hz @ -6 dB / 1.2 kHz @ -60 dB with CW filter

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

3 W

Transmitter

TX-range

10-80 m

Modulations

AM   CW   USB   LSB

RF-output

SSB: 260 W PEP, CW: 180 W, AM: 80 W

Connections

Antenna

SO-239

Impedance

50-75Ω

Other

-

Electrical

Power requirements

Mains or 12 V DC

Current drain RX

0.5 A

TX

21 A max

Physical

Dimensions (w×h×d)

?

Weight

15.20 kg (33.5 lbs)

Form factor

Base Station

Manufactured

Between 1975 and 1978

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3978

MPN

SOMMERKAMP-FT-000277

Manuals, diagrams and brochures

Sommerkamp FT-277 Instruction Manual PDF - 15.73 MB, submitted by Gerd



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sommerkamp FT-277. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Sommerkamp FT-277 is around:

• USD 132 ~ USD 246

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
