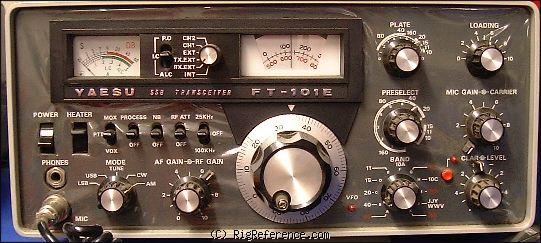

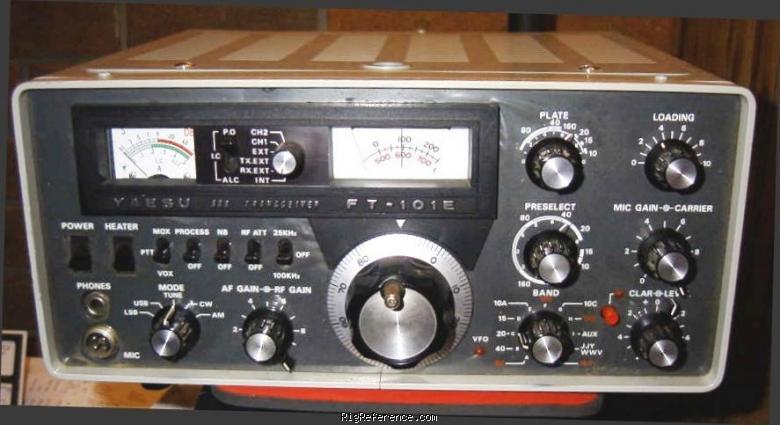

Yaesu FT-101E

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m

Modulations

AM   CW   SSB

Sensitivity

0.3 µV (10 dB S/N)

Selectivity

AM/SSB/CW: 2.4 kHz (-6 dB), 4 kHz (-60 dB)
CW with optional filter: 600 Hz (-6 dB), 1.2 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m

Modulations

AM   CW   SSB

RF-output

100 W

Connections

Antenna

SO-239

Impedance

50/75 Ω

Other

-

Electrical

Power requirements

12V DC or mains

Current drain RX

600 mA

TX

Max 21 A

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 1975 and 1978 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4234

MPN

YAESU-FT-000101E

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-101E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-101E in Good condition is around:

• USD 244 ~ USD 282
• AUD 420
• GBP 90

Price History Chart

These estimates are based on the following prices:
