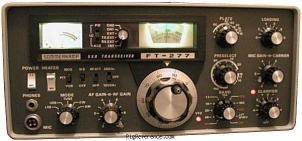

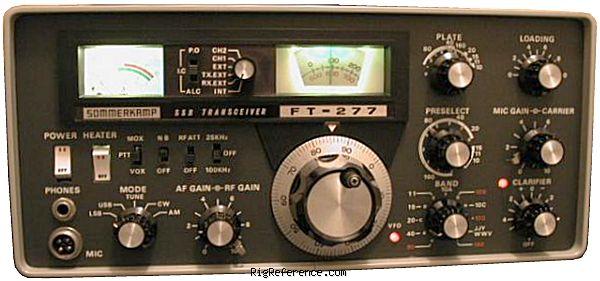

Sommerkamp FT-277

Desktop Shortwave Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

European version of the Yaesu FT-101E.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
10-160 m + WWV
Modulations
AM   CW   USB   LSB
Sensitivity
0.5 µV (10 dB S/N)
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
3 W

Transmitter

TX-range
10-80 m
Modulations
AM   CW   USB   LSB
RF-Output
SSB: 150 W, CW: 100 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains or 12 V DC
Current drain RX
?
TX
21 A max

Physical

Manufactured
Between 1975 and 1978
Dimensions (w×h×d)
?
Weight
15.20 kg (33.5 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
SOMMERKAMP-FT-000277
