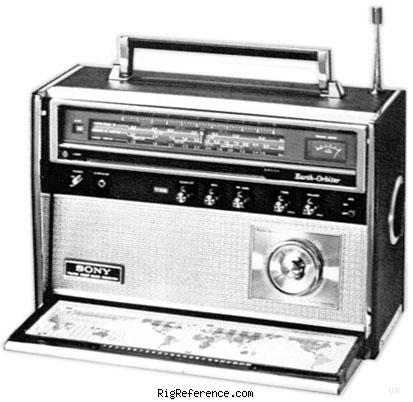

The Sony CRF-5090 is a solid-state, nine band receiver that covers longwave (150-400 kHz), medium wave, five shortwave bands, FM and VHF Air 108-136 MHz. The shortwave bands include: 1.6-3.5, 3.5-9, 9-14, 14-21 and 21-26 MHz. Band selection is via a rotary turret knob on the right side of the radio. Tuning is accomplished by main tuning knob that has a second concentric knob for electrical fine tuning. The 4 x 6 inch speaker delivers full sound. It features a BFO, RF Gain, Squelch, AFC and Tone controls. There is a dial lamp, S meter, and Tune LED built into the dial pointer. There is a handy international time zone chart on the inside of the protective front cover.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.15-30 MHz in 9 bands
87.5-108 / 108-136 / 147-174 MHz
Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
Built-in sweep
Impedance
?
Other
-

Electrical

Power requirements
9V DC or mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
340 × 234 × 170 mm (13.39 × 9.21 × 6.69 in)
Weight
6.40 kg (14.1 lbs)
Form factor
Unknown
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4008
MPN
SONY-CRF-005100-EARTH-ORBITER

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony CRF-5100 Earth orbiter. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sony CRF-5100 Earth orbiter is around:

  • USD 100.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 111.11 Used / Good John McCarthy
