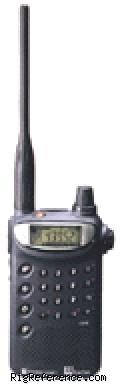

Standard C-510 Handheld VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Optional power booster: CPB510D, 50/35 W

Frequency range

RX-range
144-146 / 430-440 MHz (Europe)
144-148 / 438-450 MHz (USA)
RX: 100-190 / 332-490 / 700-950 MHz
TX-range
144-146 / 430-440 MHz (Europe)
144-148 / 438-450 MHz (USA)
RX: 100-190 / 332-490 / 700-950 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
VHF: Less than 0.2 µV (12 dB SINAD)
UHF: Less than 0.22 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 1/1 W, Low: 300/300 mW

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
3.3-8.4V DC (4.5V DC nominal)
Current drain RX
11-70 mA
TX
400-950 mA

Physical

Dimensions (w×h×d)
58 × 104 × 27 mm (2.28 × 4.09 × 1.06 in)
Weight
210 gr (7.4 oz) including battery & antenna
Form factor
Handheld
Manufactured
Between 1997 and 19xx in Japan
MPN

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS. DTMF
Accessories
-
