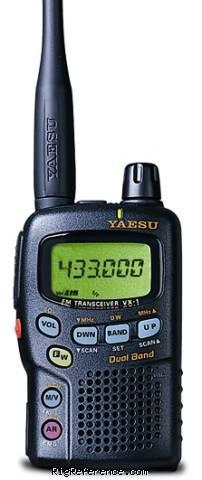

The Yaesu VX-1R is a handheld VHF/UHF transceiver. It covers 0.5-1.7 / 76-999 MHz (receive) and 144-146 / 430-440 MHz (transmit) for Europe and Asia. The RF output is 0.5W / 0.5W (1/1W with external power). It requires 3.6V DC (3.2-7V DC external). Current drain is 16-150 mA (receive) and 0.4 A @ 500 mW TX output. Dimensions are 81 × 47 × 25 mm. Weight is 125 gr.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-1.7 / 76-999 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe and Asia)
- Modulations
- FM
- RF-output
- 0.5 / 0.5 W (1/1 W with external power)
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 3.6V DC (3.2-7V DC external)
- Current drain RX
- 16-150 mA
- TX
- 0.4 A @ 500 mW TX output
Physical
- Dimensions (w×h×d)
- 47 × 81 × 25 mm (1.85 × 3.19 × 0.98 in)
- Weight
- 125 gr (4.4 oz)
- Form factor
- Handheld
- Manufactured
- Between 1997 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4395
- MPN
- YAESU-VX-000001R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VX-1R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu VX-1R is around:
- USD 13.00 ~ USD 12.00
These estimates are based on the following prices:
