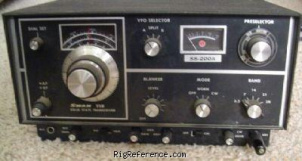

Swan (Cubic) SS-200A

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (1) Prices (0) Compare

The Swan (Cubic) SS-200A is a 10-80 m transceiver. RF output is 200 W. Power requirements are 12-14V DC. Current drain in receive mode is 250 mA and 20 A max. in transmit mode.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: CW SSB
Sensitivity: ≤ 0.1 µV
Selectivity: ?
Filters: ?
Receiver system: ? conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-80 m
Modulations: CW SSB
RF-output: 200 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12-14V DC
Current drain RX: 250 mA
TX: 20 A max.

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4134
MPN: SWAN-(CUBIC)-SS-000200A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Rating	Title	Submitted
	SWAN SS-200A et. al.	14 years ago by daileyservices

View all Swan (Cubic) SS-200A reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Swan (Cubic) SS-200A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Swan (Cubic) SS-200A is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
