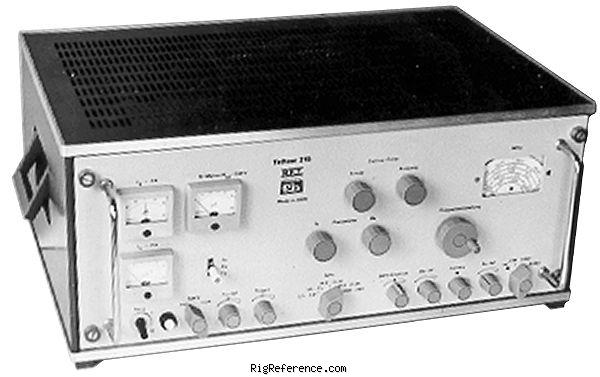

The RFT 215B is a 10-80 m transceiver. RF output is 20-60 W. Image rejection is better than 55 dB. The receiver system is ? conversion superheterodyne. It operates on Mains power. Dimensions are 222 × 542 × 348 mm and weighs 27 kg. Current drain in receive mode is Max 1.2 A @ 220 VAC, and in transmit mode it's Max 2.5 A @ 220 VAC.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- Better than 3 µV @ 10 dB S/N
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- Better than 55 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m
- Modulations
- AM CW SSB
- RF-output
- 20-60 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- Max 1.2 A @ 220 VAC
- TX
- Max 2.5 A @ 220 VAC
Physical
- Dimensions (w×h×d)
- 542 × 222 × 348 mm (21.34 × 8.74 × 13.70 in)
- Weight
- 27.00 kg (59.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1975 and 19xx in East Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4141
- MPN
- RFT-000215B
