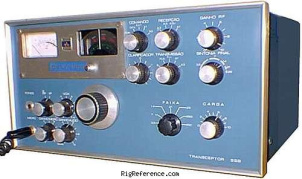

Delta DBR-500

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

100 Hz in 30 minutes (after 15 minute warm-up)

Tuning steps

Continuous

Memories

None

Receiver

RX-range

80-10 m

Modulations

AM   SSB   USB

Sensitivity

0.5 µV @ 10 dB S/N (SSB)

Selectivity

2.4 kHz @ -6 dB
4.2 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

50 dB

Audio output

2 W

Transmitter

TX-range

80-10 m

Modulations

AM   SSB   USB

RF-output

SSB: 500 W, CW: 400 W, AM: 100 W

Connections

Antenna

SO-239

Impedance

50-75Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

355 × 130 × 365 mm (13.98 × 5.12 × 14.37 in)

Weight

12.50 kg (27.6 lbs) Power supply: 8.5 kg

Form factor

Base Station

Manufactured

Between 1975 and 19xx in Brazil

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5671

MPN

DELTA-DBR-000500
