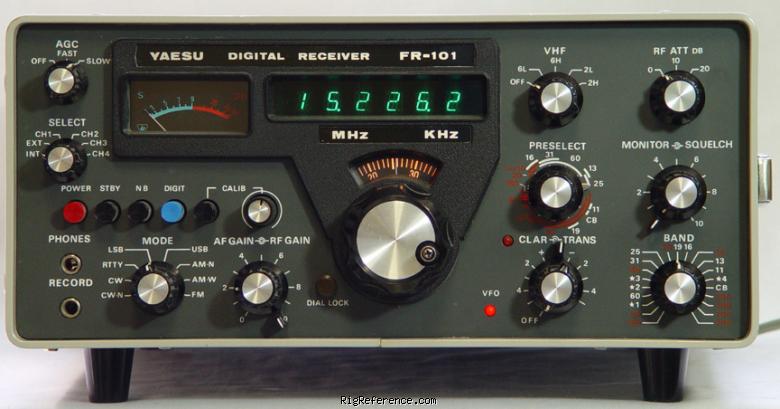

Please note this model is also referred to as the FR-101SD.

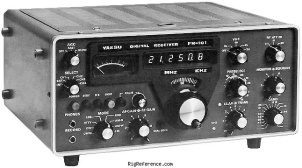

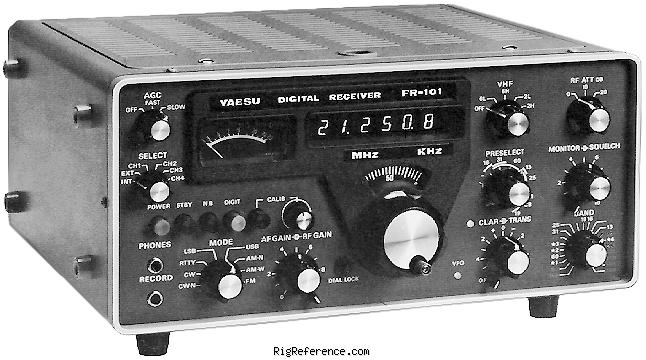

The Yaesu FR-101D is an amateur band receiver with provisions for multimode reception on twenty one 500 kHz amateur and shortwave bands from 160 to 10 meters. Two meters and six meter coverage is available by optional converters. This radio includes a stunning green digital display with analog subdial. Supplied frequency ranges include: 3.5-4, 7-7.5, 14-14.5, 21-21.5, 28-28.5, 28.5-29 MHz. It is designed to match the FL-101 transmitter through easy wiring. The FR-101D will also work with the FT-101/277E transceivers. Operation is from 100/110/117/200/220/234 VAC. Features include: attenuator, crystal calibrator, carry handle noise blanker, AGC OFF/SLOW/FAST, RF gain and squelch. The rear panel has SO239 antenna input and other I/O jacks.
Frequency range
- RX-range
- 10-160 m
- TX-range
- -
- HAM bands
- ?
- Stability
- ?
- Tuning steps
- ?
- Filters
- ?
Receiver
- Modulations
- N-AM W-AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- No built-in speaker
Transmitter
- Modulations
- -
- RF-Output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 342 × 152 × 305 mm (13.46 × 5.98 × 12.01 in)
- Weight
- 14.00 kg (30.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
- MPN
- YAESU-FR-000101D
Other features
- Memories
- ?
- Usage
- Amateur / Ham radio operators
- Features + options
- ?
- Accessories
- ?
Manuals, diagrams and brochures
- No documents available for this particular model.
- Upload relevant documents
- Show other documents.
-
Find the Yaesu FR-101D user manuals on eBay
Reviews & stories
nice receiver
Yaesu FR-101D, Desktop HF/VHF Receiver
very good audio, good performance
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Good condition in 2014
EUR 250.00
Back in 1970
Yaesu FR-101D, Desktop HF/VHF Receiver
Excellent receiver, with 2m and 6m bands also. Not continue coverage. A look in the past from my shack.
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Good condition in 2012
EUR 300.00
