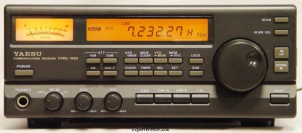

The Yaesu FRG-100 receiver provides the performance of a quality communications receiver at an affordable price. The "Frog" tunes continuously from 50 kHz to 30 MHz in CW, SSB and AM modes (FM mode optional). Microprocessor technology is used to merge performance and reliability with easy operation and functional simplicity. The FRG-100 incorporates features that both the casual and serious shortwave listeners will appreciate. Reception modes and most receiver functions are push-button selectable from the front panel. A back-lit LCD with adjustable brightness provides frequency read-out and operational status at a single glance. Selectable tuning steps of 10 Hz, 100 Hz and 1 kHz are standard, with other tuning steps programmable by the user. Fifty tunable memories store frequency, mode and filter information. Two additional memories provide band-edge information used for scanning.

The FRG-100 has programmable 12/24 hour clocks and sleep timers to enable you to automatically switch the receiver on/off to record your favorite broadcasts. Multi-function scanning (memory, band, selectable group or priority) with carrier or time-delay is supported. A special broadcast band mode enables convenient selection of 16 pre-programmed international broadcast bands.

The FRG-100's adjustable SSB carrier offset permits you to custom tailor the receiver's audio response. CW enthusiast will enjoy the reverse BFO offset and selectable CW sideband. Installation of the 250 or 500 Hz narrow filter further enhances CW reception and interference rejection. Other features include adjustable AGC, RF attenuator, noise blanker, all-mode squelch, and signal strength meter. The Yaesu CAT system provides a direct link to the CPU in the FRG-100. This can provide computer controlled customized scanning and remote control of most receiver functions. The rear panel also features antenna inputs for coaxial (SO239) or wire antenna lead-in. There are also jacks for external speaker, record out and mute. [This model is also sometimes referred to as the FRG-100B reflecting improved filter performance in later production].

General characteristics

HAM bands
?
Frequency stability
< 10 p.p.m. (< 2 p.p.m. with optional TCXO-4) 0-50C
Tuning steps
0.01 / 0.1 (CW/SSB) 0.1 / 1 (AM/FM) kHz
Memories
50 channels in 1 bank(s)

Receiver

RX-range
0.05-30 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
< .25 µV 1.8-30 MHz SSB
< 1 µV 1.8-30 MHz AM
(S+N/N=10dB)
Selectivity
AM-Wide: 6.0 kHz
AM-Narrow: 4.0 kHz
SSB/CW: 2.4 kHz
FM (opt.): 15.0 kHz
Filters
?
Receiver system
Double Conversion Superheterodyne
IF-frequencies
1st: 47.21 MHz
2nd: 455 kHz
Image rejection
> 60 dB (1.8-30 MHz)
Audio output
1.4 W, 8 Ohms

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50/450Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
1.2 A
TX
-

Physical

Dimensions (w×h×d)
230 × 92 × 236 mm (9.06 × 3.62 × 9.29 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Base Station
Manufactured
Between 1994 and 2000 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
FM optional
CAT interface
12/24h Clock
Accessories
-
RigReference ID
4218
MPN
YAESU-FRG-000100

Manuals, diagrams and brochures

Yaesu FRG-100 Schematic Diagram PDF - Unknown size, submitted by RigReference
Yaesu FRG-100 Technical Supplement (Service Manual) PDF - 11.54 MB, submitted by Gerd

Upload relevant documents

Reviews & stories

Rating Title Submitted
tcdxer 6 years ago by richard.yankee.tc
Frankly, it beats the Drakes. And costs less too. 10 years ago by Radio10
Superb Classic 12 years ago by gov.radio
FRG-100 12 years ago by dblog
FRG-100B Receiver 12 years ago by nans
FRG-100B 12 years ago by TORO
FRG-100B 12 years ago by DANX

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FRG-100 is around:

  • USD 215.00 ~ USD 149.00
  • GBP 51.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 USD 150.00 Used / Mint James Hevener
2023 USD 150.00 Used / Mint James Hevener
2017 USD 300.00 Used / Good richard.yankee.tc
2014 USD 525.00 New / Mint dxace1
2011 USD 410.00 Used / Good nans
