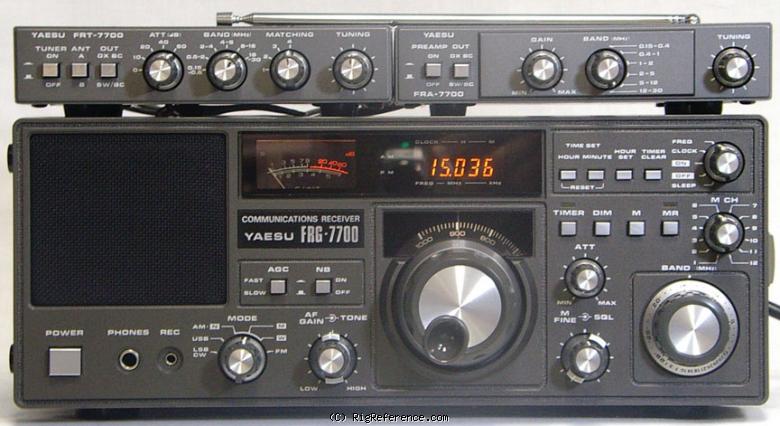

Successor of the Yaesu FRG-7000

General characteristics

HAM bands
?
Frequency stability
300Hz per 30 minutes after warm-up
Tuning steps
?
Memories
12 channels in bank(s)

Receiver

RX-range
0.15-30 MHz
Modulations
AM   N-AM   W-AM   FM   CW   USB   LSB
Sensitivity
0.5 µV 2-30 MHz, SSB/CW (S+N/N=10dB)
Selectivity
AM: 6.0 kHz
SSB/CW: 2.7 kHz
FM: 15 kHz
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
1.5 Watts at 8 Ohms

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50/500Ω
Other
-

Electrical

Power requirements
100/120/220/240V AC 50/60 Hz
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
334 × 129 × 225 mm (13.15 × 5.08 × 8.86 in)
Weight
6.00 kg (13.2 lbs)
Form factor
Base Station
Manufactured
Between 1981 and 1984 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Clock / timer
Attenuator
12 optional memory channels
Accessories
-
RigReference ID
4221
MPN
YAESU-FRG-007700

Manuals, diagrams and brochures

Yaesu FRG-7700 Schematic diagram PDF - Unknown size, submitted by RigReference
Yaesu FRG-7700 Survival Guide (by PA0PGA) PDF - Unknown size, submitted by RigReference
Yaesu FRG-7700 Instruction Manual PDF - Unknown size, submitted by RigReference
Yaesu FRG-7700 Service Manual PDF - 19.61 MB, submitted by Gerd

Upload relevant documents

Reviews & stories

Rating Title Submitted
Nice looking. Excellent AM audio quality 9 years ago by dberron
Excellent Receiver 11 years ago by MrBones
Good quality SWL set. 11 years ago by Radio10
my yaesu frg-7700 13 years ago by falconx150
Good fun to listen to 15 years ago by elmer

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-7700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FRG-7700 is around:

  • EUR 8.00 ~ EUR 19.00
  • AUD 35.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 EUR 150.00 Used / Good oe3gas
2019 EUR 170.00 New / Okay OE3GAS
2015 EUR 40.00 Used / Fair ON8ODK
2010 AUD 220.00 Used / Mint falconx150
2009 EUR 250.00 Used / Okay dberron
