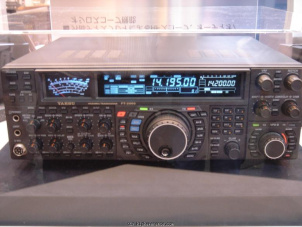

Yaesu FT-2000

Desktop HF/VHF Transceiver

View all reviews (1) Add a review Add to my shack


Login or Register to upload images

The Yaesu FT-2000 follows in the tradition of venerable FT-1000 series, and incorporates an amazing number of advanced features from the FT-9000 series. The FT-2000 provides a full 100 Watts of power output (AM: 25 W) on the 160-6 Meter Amateur bands, and the U.S. version includes a special memory bank containing the five 60-meter channels, as well. Superb continuous receive from 30 kHz to 60 MHz is provided. The receiver front-end includes VRF (Variable RF Tuning) preselector which works in conjunction with a bank of fixed bandpass filters. This provides a front-line defense against strong out of band signals. The result is improved dynamic range and a higher intercept point than other designs. The First IF roofing filters (3/6/15 kHz) increase dynamic range in crowded band conditions. Variable IF Width and IF Shift allow precise interference rejection, and the receiver DSP also includes an Auto-Notch, Manual Notch, Digital Noise Reduction, and a continuously-variable passband Contour control. The WIDTH control has a mode-determined adjustment range of 200 Hz – 4 kHz for SSB, and 25 Hz to 2.4 kHz on CW, and a mode-optimized “Narrow” key provides one-touch narrowing of the bandwidth to a user-determined preset value. You can also tailor your transmit signal. You have tremendous control over the fidelity and/or “talk power” of your SSB signal, thanks to the variable SSB bandwidth capability in the Menu. The default bandwidth is 2.4 kHz (300 – 2400 Hz @ -6 dB), but you also have selections of 50 – 3000 Hz, 100 – 2900 Hz, 200 – 2800 Hz, and 400 – 2600 Hz, allowing you to select the bandwidth best suiting your operating needs. The DMU-2000 Data Management Unit shown above is optional.

General characteristics

HAM bands
Frequency stability
±0.5 ppm (after 1 min. @ 25 °C)
Tuning steps
1 / 10 Hz / 0.1 kHz


0.03-60 MHz
AM   FM   CW   USB   LSB   RTTY
SSB/CW (2 kHz): 0.2 µV
AM (6 kHz): 2 µV
FM: 0.5 µV
3/6/15 kHz
Receiver system
Triple conversion superheterodyne
1st: 69.450 MHz
2nd: 450 kHz
3rd: 30 kHz
Image rejection
> 70 dB
Audio output
2.5 W into 4 Ohms with <10 % THD


10-160 m + WARC / 50-54 MHz
AM   FM   CW   USB   LSB   RTTY
5-100W (AM: 2-25 W)




Power requirements
13.8V DC or mains
Current drain RX
80 VA max
450 VA max


Between 2007 and 200x
Dimensions (w×h×d)
410 × 135 × 350 mm (16.14 × 5.31 × 13.78 in)
15.00 kg (33.1 lbs)
Form factor
Base Station

Other features

Amateur / Ham radio operators
Features + options
RF and LF scope
High dynamic range front end
1:st IF 6 KHz and 12 KHz roofing filters.
Twin RX

Manuals, diagrams and brochures

No documents available for this particular model.
Upload relevant documents
Show other documents.
Find the Yaesu FT-2000 user manuals on eBay

Reviews & stories


Yaesu FT-2000, Desktop HF/VHF Transceiver

This radio is a solid performer both in TX and RX. Super low noise floor on RX, that allows you to hear the weakest of stations. And the TX, second to none. I get plenty of unsolicited reports of excellent sounding audio from this rig (and I only thought that could be accomplished with a Kenwood). This radio has reintroduced me to Yaesu. So unless Kenwood can match or surpass the quality of the FT-2000, at, or close to the cost of the FT-2000, looks like my Kenwood days are over. Don't take my word for it(or what anyone else says) about this GREAT radio, Go to any reputable ham dealer, and operate the radio yourself. Once you get past all of the eye candy that this radio has to offer, you will find the performance of this rig is spectacular.

Written by KB2VYZ on Jun 27, 2010

Build quality
User friendliness
Value for money
Good condition in 2009
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-2000 is around:

  • EUR 847.00 ~ EUR 491.00
  • USD 741.00
  • CAD 754.00
Year Historic price Condition Submitted by
2010 EUR 2125.00 New / Good thiecom.de
2010 USD 1860.00 Used / Good eBay
2009 EUR 1550.00 Used / Mint S52DK
2008 CAD 3000.00 Used / Good Icebird
