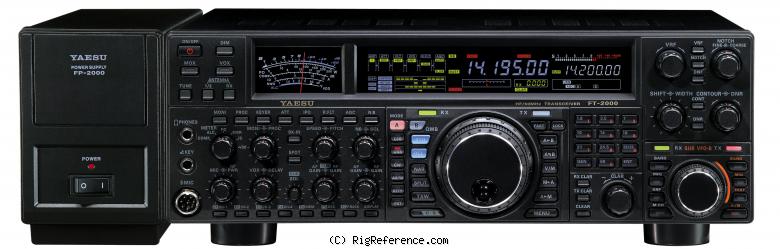

The Yaesu FT-2000D differs only in RF-output from the FT-2000.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
±0.5 ppm (after 1 min. @ 25 °C)
Tuning steps
1 / 10 Hz / 0.1 kHz
Memories
?

Receiver

RX-range
0.03-60 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
SSB/CW (2 kHz): 0.2 µV
AM (6 kHz): 2 µV
FM: 0.5 µV
Selectivity
?
Filters
3/6/15 kHz
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 69.450 MHz
2nd: 450 kHz
3rd: 30 kHz
Image rejection
> 70 dB
Audio output
2.5 W into 4 Ohms with <10 % THD

Transmitter

TX-range
10-160 m + WARC / 50-54 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
10-200W (AM: 5-50W)

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC or mains
Current drain RX
80 VA max
TX
720 VA max

Physical

Dimensions (w×h×d)
410 × 135 × 350 mm (16.14 × 5.31 × 13.78 in)
Weight
17.50 kg (38.6 lbs)
Form factor
Base Station
Manufactured
Between 2007 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
IF-DSP
RF and LF scope
High dynamic range front end
1:st IF 6 KHz and 12 KHz roofing filters.
Twin RX
Accessories
-
RigReference ID
4246
MPN
YAESU-FT-002000D

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2000D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-2000D is around:

  • EUR 457.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 EUR 2849.00 New / Good thiecom.de
