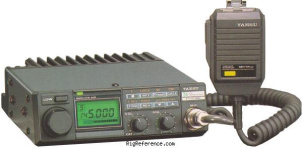

Yaesu FT-211RH

Mobile VHF Transceiver

Specs Manuals (2) Reviews (1) Prices (1) Compare

The Yaesu FT-211RH is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. RF output power is selectable between High: 45 W and Low: 5 W. The transceiver requires 13.8V DC power and draws 450-700 mA in receive mode and a maximum of 9 A in transmit mode. Dimensions are 50 × 160 × 175 mm and the weight is 1.5 kg.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 12.5 / 25 kHz
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 45 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 450-700 mA
TX: Max 9 A

Physical

Dimensions (w×h×d): 160 × 50 × 175 mm (6.30 × 1.97 × 6.89 in)
Weight: 1.50 kg (3.3 lbs)
Form factor: Mobile
Manufactured: Between 1987 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4255
MPN: YAESU-FT-000211RH

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: FT-211 RH User PDF - 917.5 kB, submitted by Alex
: Ft211RH Serv PDF - 5.00 MB, submitted by Alex

: Upload relevant documents

Reviews

Rating	Title	Submitted
	Clear audio.	11 years ago by rod.jones1

View all Yaesu FT-211RH reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-211RH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-211RH in Good condition is around:

GBP 20

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	GBP 20.00	Used / Good	rod.jones1
