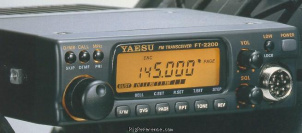

The Yaesu FT-2200 is a compact, full-featured 2 meter mobile transceiver. Despite its diminutive size, it provides RF power out at 5, 25 or 50 watts. 50 Memories are available. Extened receive from 110-180 MHz is featured including the civil air band (118-139 MHz in AM mode). The optional DVS-3 Digital voice unit permits digital voice recording and playback. A backlit DTMF hande mic is supplied.

The Yaesu FT-7200 is similar to the Yaesu FT-2200 but covers the 430-450 MHz (70 cm) band instead of 2 meters.

Frequency range

RX-range
144-146 MHz (Europe)
144-148 MHz (USA)
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 50 W, Medium: 25 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 0.7 A
TX
Max 10 A

Physical

Dimensions (w×h×d)
140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight
1.25 kg (2.8 lbs)
Form factor
Mobile
Manufactured
Between 1994 and 19xx
MPN
YAESU-FT-002200

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
