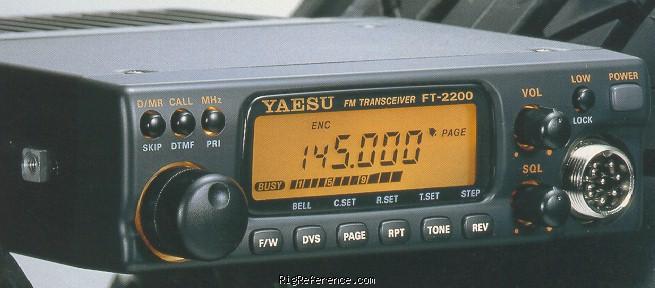

The Yaesu FT-2200 is a compact, full-featured 2 meter mobile transceiver. Despite its diminutive size, it provides RF power out at 5, 25 or 50 watts. 50 Memories are available. Extened receive from 110-180 MHz is featured including the civil air band (118-139 MHz in AM mode). The optional DVS-3 Digital voice unit permits digital voice recording and playback. A backlit DTMF hande mic is supplied.
The Yaesu FT-7200 is similar to the Yaesu FT-2200 but covers the 430-450 MHz (70 cm) band instead of 2 meters.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 50 W, Medium: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 0.7 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1.25 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1994 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4258
- MPN
- YAESU-FT-002200
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Yaesu FT-2200 is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
