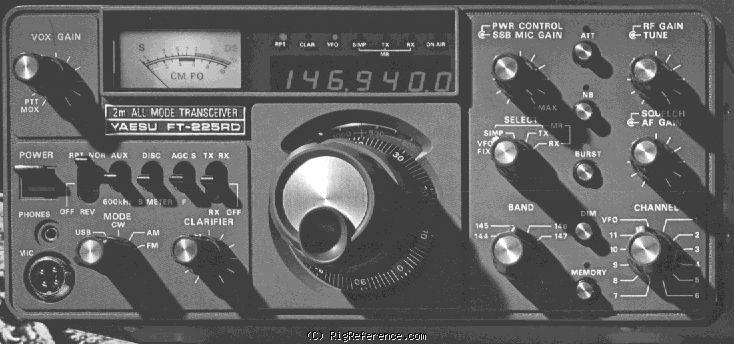

The Yaesu FT-225RD is a 2 meter multi-mode transceiver that operates in SSB, CW, FM and AM modes. Power output is: 25 watts SSB/CW/FM and 8 watts and AM mode. watts. Frequency coverage is 144 to 148 MHz. It has a noise blanker, speaker and three way analog meter (S Meter/Power Out/FM Discriminator). Enjoy digital display to 100 kHz.
The Yaesu FT-225R is a similar analog version at a lower price.
The Yaesu FT-625RD is similar to the FT-225RD, with the same power output, but operates on 6 meters instead of 2 meters.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- AM FM CW SSB
- RF-output
- FM/SSB/CW: 25 W, AM: 15 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- ?
- TX
- Max 5 A
Physical
- Dimensions (w×h×d)
- 280 × 125 × 315 mm (11.02 × 4.92 × 12.40 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1978 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Digital readout
- Accessories
- -
- RigReference ID
- 4261
- MPN
- YAESU-FT-000225RD
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-225RD. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-225RD in Good condition is around:
- EUR 280 ~ EUR 506
These estimates are based on the following prices:
