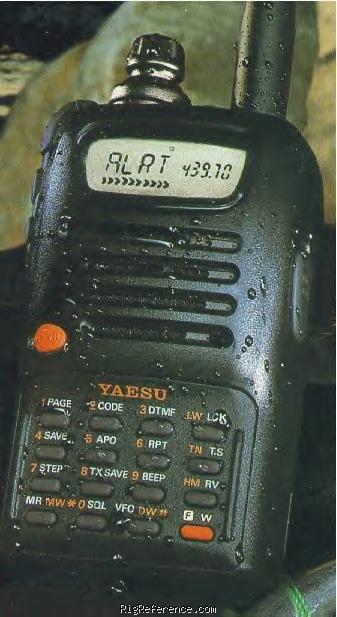

The Yaesu FT-40R single bander is similar to the Yaesu FT-50R, but covers only the 440 MHz band instead of 2 meters and 440 MHz. Receive frequency coverage is 420 to 470 MHz and transmit from 430 to 450 MHz. RF power output is: 5, 2.5, 1 or 0.1 watts.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 10 / 12.5 / 20 / 25 / 50 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 420-470 MHz
- Modulations
- FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 58.05 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 500 mW @ 10% distortion / 8 ohms
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- 5 / 2 / 1 / 0.1 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 4-16V DC
- Current drain RX
- Max 200 mA
- TX
- Max 1.5 A
Physical
- Dimensions (w×h×d)
- 57 × 99 × 30 mm (2.24 × 3.90 × 1.18 in)
- Weight
- 325 gr (11.5 oz) with FNB-40
- Form factor
- Handheld
- Manufactured
- Between 1995 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/PL
DCS
ARTS - Accessories
- This transceiver could be equipped with four different keypads(!)
- RigReference ID
- 4292
- MPN
- YAESU-FT-000040R
