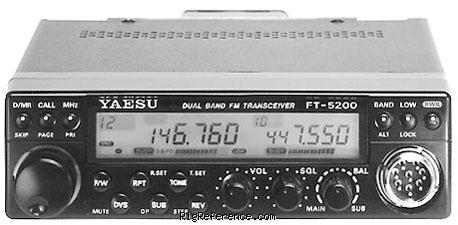

Yaesu FT-5200

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yaesu FT-5200 is a mobile VHF/UHF transceiver. Frequency range for reception and transmission is 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA). Tuning steps are selectable from 5, 10, 12.5, 15, 20, or 25 kHz. RF output is High: 50/35 W, Low: 5/5 W. The radio has 1 memory bank with 800 channels. Power requirements are 13.8V DC. Current drain in receive mode is Max 0.6 A and in transmit mode Max 11.5 A. Dimensions are 40 × 140 × 155 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 kHz
Memories: 800 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
Modulations: FM
RF-output: High: 50/35 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 0.6 A
TX: Max 11.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 155 mm (5.51 × 1.57 × 6.10 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 199x and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 4306
MPN: YAESU-FT-005200
