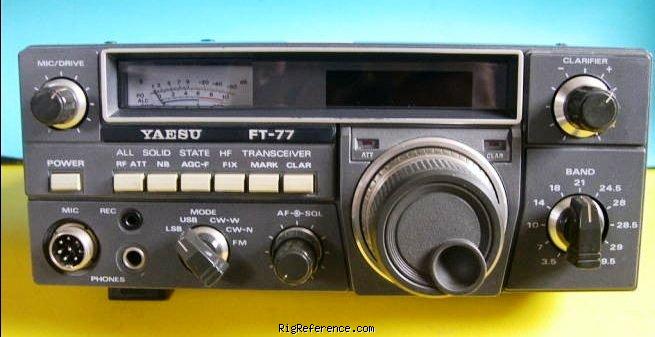

The Yaesu FT-77 is a 10-80 m + WARC transceiver. RF output is 100 W. Power requirements are 13.8V DC. Dimensions are 95 × 240 × 300 mm. Weight is 6 kg.
General characteristics
- HAM bands
- 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m + WARC
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m + WARC
- Modulations
- FM CW SSB
- RF-output
- 100 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 240 × 95 × 300 mm (9.45 × 3.74 × 11.81 in)
- Weight
- 6.00 kg (13.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 198x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4343
- MPN
- YAESU-FT-000077
Manuals, diagrams and brochures
- Yaesu FT-77 Instruction Manual PDF - Unknown size, submitted by RigReference
- Yaesu FT-77 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-77. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-77 in Good condition is around:
- EUR 150
These estimates are based on the following prices:
