Chinese KN-920

Base Station HF Transceiver

View all reviews (1) Add a review Add to my shack


Login or Register to upload images

Find Chinese KN-920 rigs and spare parts on eBay Find the Chinese KN-920 on Amazon
We receive a small fee when you buy through these links, thank you!

Price when new in 2013: USD 346,-

Frequency range

30 kHz - 29.999 MHz
80-10 m
HAM bands
80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Tuning steps
0.01 / 0.1 / 1 / 10 / 100 kHz


AM   FM   CW   SSB
CW: 0.2 µV / 10 dB
AM: 1 µV / 10 dB
FM: 0.2 µV
2.4 kHz @ -6 dB
3.6 kHz @ -40 dB
AM: 6 kHz
CW: 200-1200 kHz
Receiver system
Double (AM/CW/SSB) / triple (FM) conversion
1st: 45 MHz
2nd: 12 MHz
3rd: 455 kHz (FM-only)
Image rejection
70 dB
Audio output
internal speaker


FM   CW   SSB
1-10 W




Power requirements
13.8 V DC
Current drain RX
700 mA
4 A


Dimensions (w×h×d)
230 × 230 × 90 mm (9.06 × 9.06 × 3.54 in)
3.50 kg (7.7 lbs)
Form factor
Base Station
Between 2013 and 20xx in China

Other features

100 channels in 1 bank(s)
Amateur / Ham radio operators
Features + options
USB interface
LCD display
Built-in keyer
Built-in ATU

Manuals, diagrams and brochures

No documents available for this particular model.
Upload relevant documents
Show other documents.
Find the Chinese KN-920 user manuals on eBay #ad

Reviews & stories

KN-920 HF Radio

Chinese KN-920, Base Station HF Transceiver

I purchased the KN-920 from Aliexpress and shipping was 5 days from China. Rig arrived with bubble wrap around it and rolled cardboard in the box, light packaging for the distance it had to travel but survived the trip without any incidents.

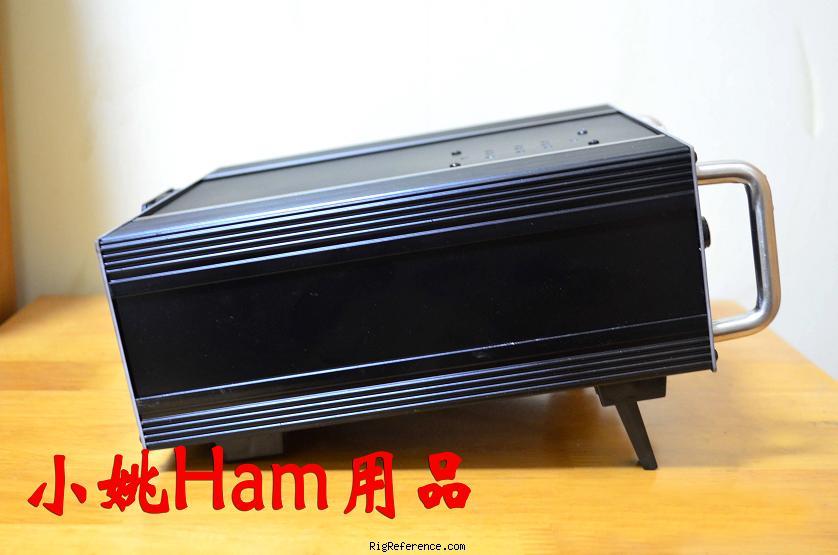

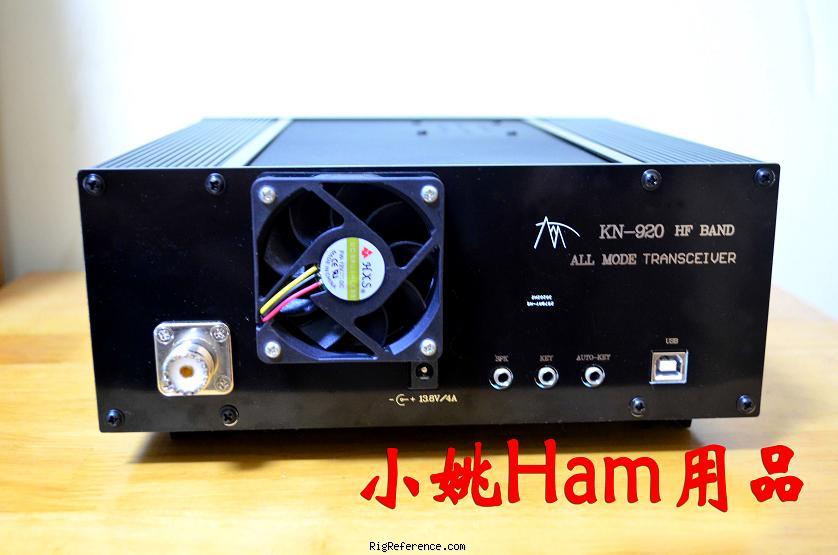

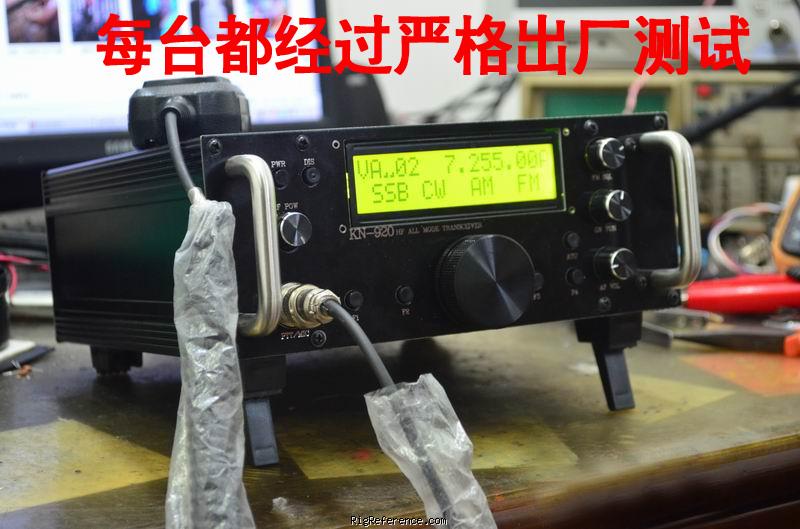

The radio was abit bigger than I had thought it would be but all silk screening was perfect and cabinet made of light aluminum, with handles on the front. Nice big green display very easy to read. USB port on back (unknown function), tuning knob on front and various menu buttons.
Powered the rig on and played with menus and wrote down all factory preset settings and then found other menus and functions.
The radio appears to very prone to any local noise depending on antenna used. Transmits on USB,LSB,FM and CW and receive only in AM.
Transmits a full 10 watts on max setting on all ham bands plus WARC bands.
Lots of birdies though on all bands, will make note of where teh birdies are in a later review.
Made many qso's on CW but have not tried any on SSB to this point.
However I now have had an issue with the finals shorting out and needing to be replaced, at the same time some of the trace also burnt up, the finals are IRF530's and should actually just ride along at 10 watts continuous operation with no effort.
Communications with the seller are not the greatest and communication with builder are non-existant.
No offers for any type of refund or repair that would be feasable for both sides have been made.
The radio itself was operating well on CW, but would I buy another one again, NO.
There are better radios out there on the market.
I am just in the process of replacing the finals and see what happens after that.


Written by ve3fal on Sep 19, 2013

Build quality
User friendlyness
Value for money
Mint condition in 2013
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Chinese KN-920. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Chinese KN-920 is around:

  • USD 399.00
  • EUR 284.00
Year Historic price Condition Submitted by
2018 USD 400.00 New / Mint RigReference
2013 EUR 346.00 New / Mint RigReference
