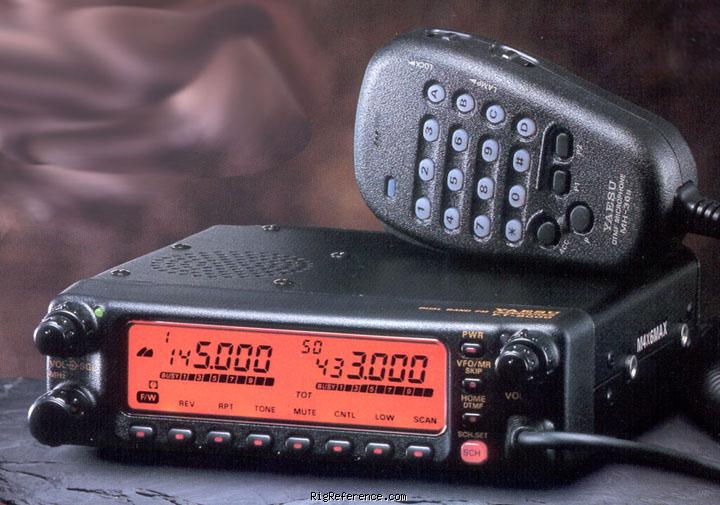

Yaesu FT-8000R

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yaesu FT-8000R is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit frequencies. The RF output power is selectable between High: 50/35 W, Medium: 10/10 W, or Low: 3/3 W. It features 9K6 packet ready and Twin RX functionality. It requires 13.8V DC and has a maximum current drain of 11.5 A during transmit. Dimensions are 40 × 140 × 153 mm and it weighs 1 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 50/35 W, Medium: 10/10 W, Low: 3/3 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: Max 11.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 153 mm (5.51 × 1.57 × 6.02 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: 9K6 packet ready. Twin RX.
Accessories: -
RigReference ID: 4351
MPN: YAESU-FT-008000R

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-8000R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Yaesu FT-8000R is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
