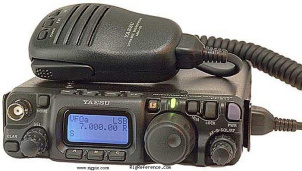

This is an updated FT-817 with 60 m coverage and higher capacity battery pack

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  70cm  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.1-56 / 76-154 / 420-470 MHz
Modulations
AM   FM   W-FM   CW   SSB   RTTY   PSK31/63
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC/ 50-54 / 144-146 / 430-440 MHz (Europe)
10-160 m + WARC and 60 m / 50-54 / 144-148 / 440-450 MHz (USA)
Modulations
AM   FM   W-FM   CW   SSB   RTTY   PSK31/63
RF-output
5 W (SSB/CW/FM) and 1.5 W (AM) with 13.8 V external DC, 2.5 W (SSB/CW/FM) and 0.7 W (AM) with 9.6 V internal DC

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
8Li-Ion / R6/AA or 13.8V DC external
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 2004 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS/DCS. Spectrum scope. Alpha tags. 9K6 packet ready.
Accessories
-
RigReference ID
4357
MPN
YAESU-FT-000817ND

Manuals, diagrams and brochures

Yaesu FT-817 Simplified Operating Guide PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
The cats whiskers. 4 years ago by outasight
Great Radio 10 years ago by qualsh

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-817ND. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-817ND is around:

  • EUR 348.00 ~ EUR 287.00
  • USD 599.00 ~ USD 495.00
  • CAD 198.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 600.00 Used / Good nd3q
2018 EUR 350.00 New / Mint Stefan Andreas
2015 USD 550.00 Used / Good ke3oxmsd
2014 EUR 350.00 Used / Good PA1EC
2010 EUR 529.00 New / Good thiecom.de
